INT-MAT PB914N SPST - 208-277V 24 H

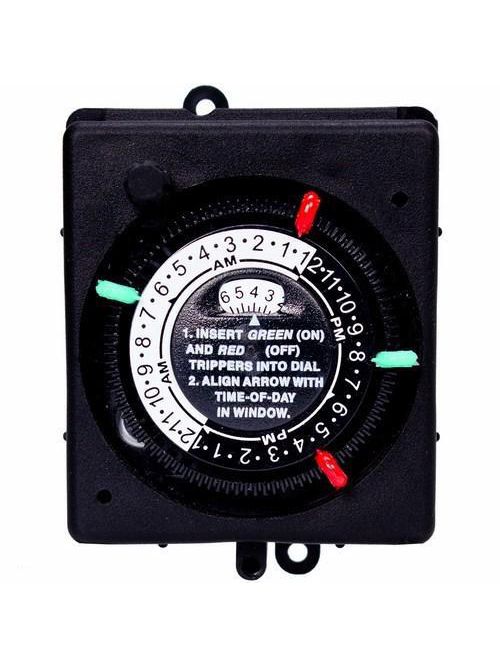

Product image thumbnail 0

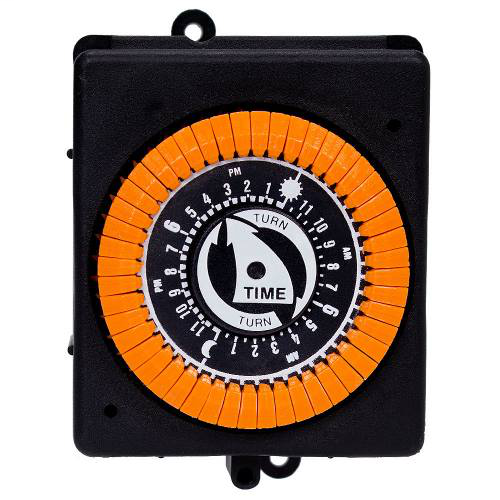

Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # PB914N
North Coast Part # 271701

Features & Applications


  • Automated control for pumps, cleaners, and other types of loads
  • 3 different mounting methods
  • Quick connect terminals for easy installation
  • 24-hour timing cycle - MIN ON time 1-hr, MAX ON time 23-hr, 30-min intervals
  • 7-day timing cycle - 6 to 162-hr ON time, 3-hr intervals


  • Automated Control for Pumps, Cleaners, Other Types of Loads


  • Maximum ON/OFF Operations: 0
  • Maximum Cycle Time: 23 hrs
  • Minimum Cycle Time: 1 hr
  • Timing Interval: 30 min
  • Has Override Switch: No
  • Input Voltages Display: 208-277 VAC, 60 Hz
  • Resistive: 20 A, 120-277 VAC, 60 Hz
  • Tungsten: 1250 W, 125 VAC, 60 Hz
  • Pilot Duty: 360 VA, 120-277 VAC, 60 Hz
  • Motor: 1 HP, 16 FLA, 120 VAC, 60 Hz 2 HP, 12 FLA, 240 VAC, 60 Hz
  • Mounting Options: Flush, Panel, Surface
  • Number of Trippers Included: 0
  • Number of Circuits: 1
  • Switch Type: SPST
  • Operating Temperature Max (°C): 0
  • Operating Temperature Max (F): 0
  • Operating Temperature Min (°C): 0
  • Operating Temperature Min (F): 0
  • Warranty: 1-year

Product Rating

Related Accessories and Parts

  • 156PB10398A: Trippers - Clip, ON/OFF, 24-Hr for PB and PF1100 Series


UPC 07827511560
Item Long Description These timers provide automatic control for pumps, cleaners and other types of loads. Timers have three-way mounting; flush in round opening, raised in rectangular opening or on base. Quick connect terminals for easy installation.
GTiN 00078275115606
Warranty Length 1 yr
Size 3-1/3 HEIGHT X 2-13/16 WIDTH X 1-61/64 DEPTH IN, 84.8 HEIGHT X 17.4 WIDTH X 49.6 DEPTH CM
Type Electromechanical
Applications Filter Pumps, Booster Pumps, Sprinkler Systems, Heating Systems, Lights, Cleaning Systems, Security Systems
Mounting Type Panel Mount
Standard CCSAus Certified,CSA,UL Listed,UL Recognized
Frequency 60 Hz
Wattage 1250 Watt
Switch Type SPST
Input Voltage 208-277 V
Family Brand Name Intermatic
Contact Configuration 1 NO
Max Operating Temperature 0 degrees F
Min Operating Temperature 0 degrees F
Contact Rating 20 AMP @ 120 - 277 VAC (Resistive), 1250 WTT @ 125 VAC (Tungsten)
Number of Poles 1 Pole
Action SPST
Voltage 208-277 VAC
