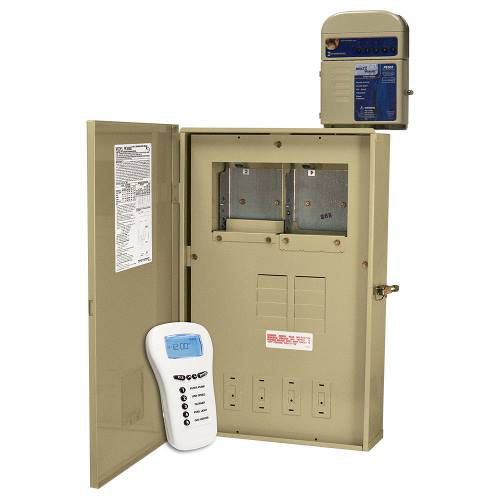

INT-MAT PE30065RC 80A MULTIWAVE KIT

Features & Applications

Features

• Controls 5 circuits
• Controls pumps, lights, cleaners, and heaters
• Operates single, two, and Pentair IntelliFlo and IntelliPro variable-speed pumps
• 24-hour timing with 3 ON/OFF events per circuit
• Includes receiver, wireless remote, water and air temperature sensors, (3) AA batteries, equipment labels, flathead screwdriver, raintight enclosure, raintight cap and mount for remote mounting antenna
• Type 3R metal indoor/outdoor enclosure
• See MultiWaveTM ECS and ECS Plus Systems on page 134 for additional control options
• Type 3R indoor/outdoor metal load center
• Four knockouts for GFCIs and switches
• Eight position 80 A breaker base

Applications

• Pool or Spa Equipment
• Single Body of Water
• No Valve Rotation

Specifications

• Load Center Ratings: 80 A, 120 VAC, 80 A, 208 VAC Single Phase, 80 A, 240 VAC
• Input Voltages Display: 80 A, 120/240 VAC or 120/208 VAC single phase
• Number of Circuits: 5
• Heater Protection Switch: No
• Number of Actuators Controlled: 0
• Motor: 17 FLA, 120/240 VAC, 50/60 Hz 80 LRA, 120/240 VAC, 50/60 Hz
• Operating Temperature Max (°C): 0
• Operating Temperature Max (F): 0
• Operating Temperature Min (°C): 0
• Operating Temperature Min (F): 0
• Transformer (W): 0
• Number of Breaker Knockouts: 8
• Number of Receptacle/Switch Knockouts: 4
• Enclosure Rating: Outdoor Type 3R Plastic
• Warranty: 2-year

Documents & Downloads

Product Rating

Related Accessories and Parts

• P5043ME: MultiWave Expansion Module - Mechanism Only
• PE30000: 80 A Pool/Spa Type 3R Load Center
• PE653: MultiWave 5-Circuit Wireless Receiver
• PA122: Water/Solar Temperature Sensor, 10k OHM, For Multiwave systems
• PE953: Wireless Remote, Multiwave systems (NOTE: Contact Technical Support to verify compatibility)
• 178PA28A: Freeze Probe Kit, 10k OHM, For Multiwave systems
