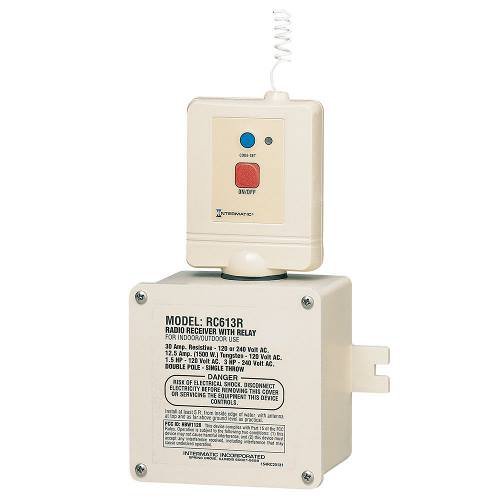

INT-MAT RC613R Heavy Duty Receiver
$215.54/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # RC613R
North Coast Part # 342808

Features & Applications

Features

  • Respond to handheld transmitter (provided separately below)
  • For indoor/outdoor use
  • Handle a variety of switching applications
  • Enable connected loads to be turned ON/OFF remotely
  • Maximum range 100 ft.
  • Beige outdoor grade plastic enclosure

Applications

  • Pumps
  • Lights

Specifications

  • Switch Type: DPST
  • Maximum Receiver Count: 0
  • Number of Radio Channels: 1
  • Reception Range (ft): 100
  • Reception Range (m): 30.48
  • Resistive: 30 A, 120/240 VAC, 60 Hz
  • Motor: 240 VAC, 3 HP
  • Wire Lead Length (mm): 0
  • Air Tube Max Length (ft): 0
  • Air Tube Max Length (m): 0
  • Warranty: 1-year

Documents & Downloads

Product Rating

Overview

UPC 07827506766
GTiN 00078275067660
Warranty Length 1 yr
Width 4 in
Color Beige
Voltage 120 Volt
Type Single Channel Radio Receiver
Material Plastic
Product Series RC600
Applications Pool/Spa Pumps, Lights & Heaters, Air Blowers, Signs, Pool/Spa Combinations, Fountain Pumps, Water Features, Outdoor Lighting, Motorized Gates, Motorized Valves
Depth 3-1/2 in
Height 7-3/4 in
Standard CCSAus Listed
Wattage 1500 Watt
Horsepower 1.5 hp
Switch Type DPST
Family Brand Name Intermatic
Amperage 12.5 Amp
Wire Length 0 mm
