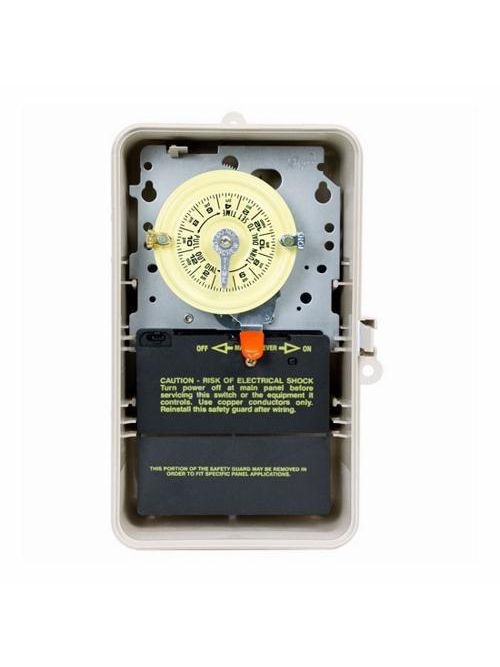

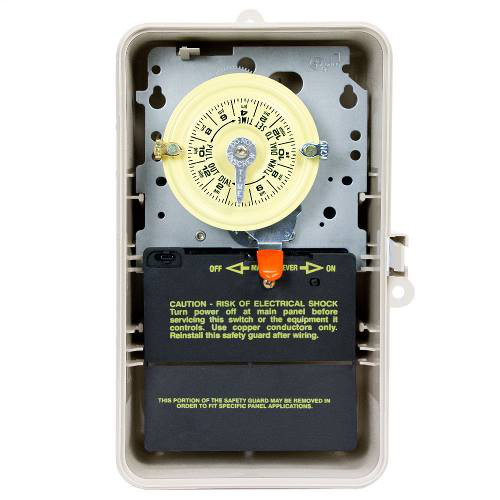

Intermatic T101P3 NEMA 3R Plastic Case 125 VAC 60 Hz 40 Amp SPST Electromechanical Time Switch
$134.25/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # T101P3
North Coast Part # 546535

Features & Applications

Features

  • Highest motor load ratings in the industry
  • 12 ON/OFF operations per day
  • ON/OFF trippers included
  • Available with pool heater protection
  • Teeter-type terminals for multiple load connections

Applications

  • Pumps
  • Lighting
  • Heaters

Specifications

  • Maximum ON/OFF Operations: 12
  • Operation Mode: 24-hour
  • Has Override Switch: No
  • Input Voltages Display: 120 VAC, 60 Hz
  • Electronic Ballast: 16 A, 277 VAC, 60 Hz
  • Motor: 2 HP, 24 FLA, 120 VAC, 60 Hz 5 HP, 28 FLA, 240 VAC, 60 Hz
  • Enclosure Type: Outdoor Type 3R Metal
  • Number of Trippers Included: 0
  • Number of Circuits: 1
  • Maximum Power Consumption (W): 3 W
  • Switch Type: SPST
  • Operating Temperature Max (°C): 54
  • Operating Temperature Max (F): 130
  • Operating Temperature Min (°C): -40
  • Operating Temperature Min (F): -40
  • Warranty: 1-year

Documents & Downloads

Product Rating


Related Accessories and Parts

  • 156T1978A: 1 Set of ON/OFF Trippers for T100, T7000, and WH40
  • WG1570-10D: 125 VAC, 60 Hz Motor for T101, T103, T105
  • 124--00066: Insulator for 3-Circuit Timers

Overview

UPC 07827502628
GTiN 00078275026285
Warranty Length 1 yr
Operating Temperature -40 To 130 F
Voltage 120 Volt
Type Mechanical
Applications Commercial, Industrial, Residential, Booster Pumps, Lighting, Hydro Chlorinators, Fans, Air Conditioning, Music and Signal Systems, Heat Pumps
Mounting Type Wall Mount
Standard CCSAus Certified
Frequency 60 Hz
Switch Type SPST
Input Voltage 120 V
Family Brand Name Intermatic
Contact Configuration 1 NO
Max Operating Temperature 130 degrees F
Min Operating Temperature -40 degrees F
Contact Rating 40 AMP @ 120 - 480 VAC (Resistive), 40 AMP @ 120 - 277 VAC (Tungsten, Inductive)
Number of Poles 1 Pole
Enclosure NEMA 3R Plastic
Action SPST
