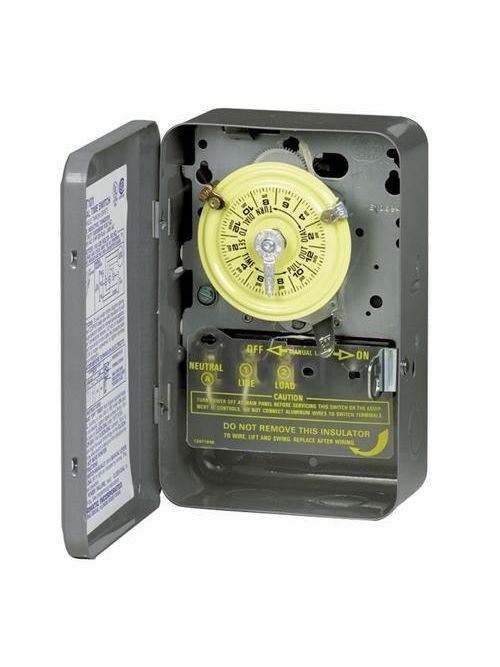

Intermatic T102 NEMA 1 Steel Case 208 to 277 VAC 60 Hz 40 Amp SPST Electromechanical Time Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$131.42/ea
In Stock | 9 available at 8 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # T102
North Coast Part # 92828

Features & Applications

Features

  • Direct 24-hour control of most loads
  • Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour
  • Manual override
  • One ON and one OFF tripper included

Applications

  • Indoor/Outdoor Lighting
  • Signs
  • Filters
  • Electric Fences
  • Fans
  • Conveyors
  • Pool Heaters
  • Blowers
  • Pumps

Specifications

  • Minimum ON/OFF Times: 1 hour
  • Maximum ON/OFF Operations: 12
  • Input Voltages Display: 208-277 VAC, 60 Hz
  • Operation Mode: 24-hours
  • Has Override Switch: No
  • Electronic Ballast: 16 A, 277 VAC, 60 Hz
  • Motor: 2 HP, 24 FLA, 120 VAC, 60 Hz 5 HP, 28 FLA, 240 VAC, 60 Hz
  • Maximum Power Consumption (W): 3 W
  • Operating Temperature Max (°C): 54
  • Operating Temperature Max (F): 130
  • Operating Temperature Min (°C): -40
  • Operating Temperature Min (F): -40
  • Wire Size Max: #8 AWG
  • Wire Size Min: #14 AWG
  • Enclosure Type: Indoor Type 1 Metal
  • Product Height (in): 7.875
  • Product Height (mm): 200
  • Product Width (in): 5.125
  • Product Width (mm): 130.2
  • Product Depth (in): 3.4375
  • Product Depth (mm): 87.3
  • Warranty: 1-year

Documents & Downloads

Product Rating


Related Accessories and Parts

  • 22T338GR: Mounting Bracket for Intermatic Standardized Timer Mechanisms
  • 156T1978A: 1 Set of ON/OFF Trippers for T100, T7000, and WH40
  • 156T1978AD12: 12 Pack of 156T1978A Trippers for T100, T7000, and WH40
  • 124T1948: Insulator for Single-Pole Time Switch (T101, T102, T171, T172)
  • WG1573-10D: 208-277 VAC, 60 Hz Motor for T102, T104, T106, T172, T174, WH40

Categories

Overview

UPC 07827510221
GTiN 00078275102217
Warranty Length 1 yr
Width 5.125 in
Size 5 LENGTH X 3 WIDTH X 7-3/4 HEIGHT IN, 12.70 LENGTH X 7.62 WIDTH X 19.69 HEIGHT CM
Operating Temperature -40 To 130 F
Type Electromechanical
Applications Commercial, Industrial, Residential, Indoor, HVACR
Mounting Type Wall Mount
Depth 3.4375 in
Height 7.875 in
Frequency 60 Hz
Connection Type Teeter Type
Wattage 3 Watt
Input Voltage 208-277 V
Temperature Rating -40 to 130 F
Family Brand Name Intermatic
Power Source 5 hp
TC Connection Teeter Type
Contact Configuration SPST - 1 NO
Amperage 40 Amp
Power Consumption 3 W
Max Operating Temperature 130 degrees F
Blade Dimensions 5 in L x 3 in W x 7-3/4 in H
Min Operating Temperature -40 degrees F
Max Wire Size 8 AWG
Min Wire Size 14 AWG
Contact Rating 40 A at 120 - 277 VAC (Tungsten), 40 A at 120 - 480 VAC (Resistive)
Number of Poles 1 Pole
Enclosure NEMA 1
Action SPST
Voltage 208-277 VAC
