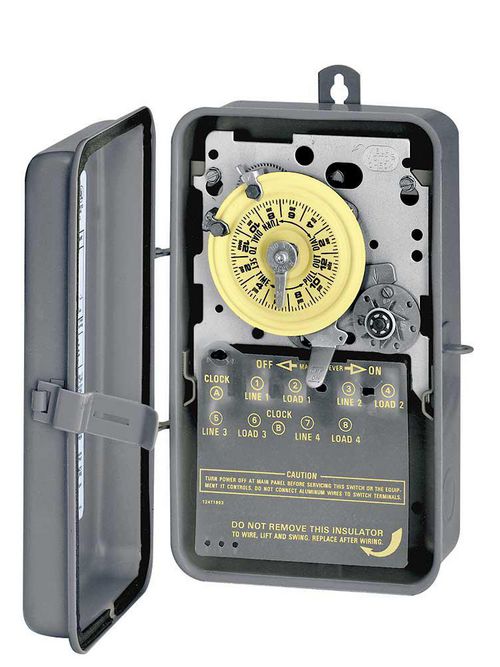

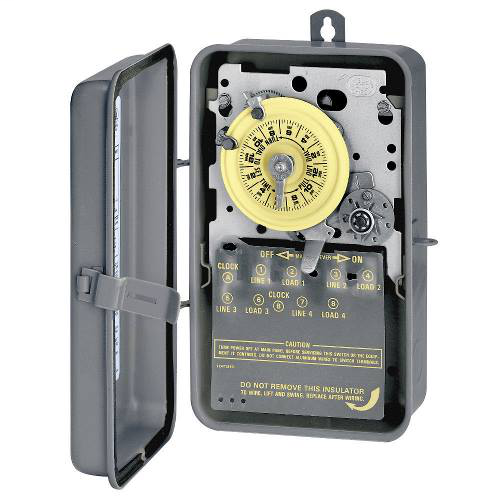

INT-MAT T1205R NEMA 3R - Steel Case
$285.82/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # T1205R
North Coast Part # 1341697

Features & Applications

Features

  • Direct 24-hour control of most loads
  • Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour
  • Manual override
  • One ON and one OFF tripper included

Applications

  • Indoor/Outdoor Lighting
  • Signs
  • Filters
  • Electric Fences
  • Fans
  • Conveyors
  • Pool Heaters
  • Blowers
  • Pumps

Specifications

  • Minimum ON/OFF Times: 1 hour
  • Maximum ON/OFF Operations: 12
  • Input Voltages Display: 480 VAC, 60 Hz
  • Operation Mode: 24-hours
  • Has Override Switch: No
  • Electronic Ballast: 16 A, 277 VAC, 60 Hz
  • Motor: 2 HP, 24 FLA, 120 VAC, 60 Hz 5 HP, 28 FLA, 240 VAC, 60 Hz
  • Maximum Power Consumption (W): 3 W
  • Operating Temperature Max (°C): 54
  • Operating Temperature Max (F): 130
  • Operating Temperature Min (°C): -40
  • Operating Temperature Min (F): -40
  • Wire Size Max: #8 AWG
  • Wire Size Min: #14 AWG
  • Enclosure Type: Indoor/Outdoor Type 3R Metal
  • Product Height (in): 10.125
  • Product Height (mm): 257.2
  • Product Width (in): 6.5
  • Product Width (mm): 165.1
  • Product Depth (in): 3.625
  • Product Depth (mm): 92.1
  • Warranty: 1-year

Documents & Downloads

Product Rating


Related Accessories and Parts

  • 22T338GR: Mounting Bracket for Intermatic Standardized Timer Mechanisms
  • 156T1978A: 1 Set of ON/OFF Trippers for T100, T7000, and WH40
  • 156T1978AD12: 12 Pack of 156T1978A Trippers for T100, T7000, and WH40

Overview

UPC 07827510225
GTiN 00078275102255
Warranty Length 1 yr
Width 6.5 in
Type Mechanical
Mounting Type Wall Mount
Depth 3.625 in
Height 10.125 in
Frequency 60 Hz
Input Voltage 480 V
Family Brand Name Intermatic
Contact Configuration 2 NO
Max Operating Temperature 130 degrees F
Min Operating Temperature -40 degrees F
Max Wire Size 8 AWG
Min Wire Size 14 AWG
Number of Poles 2 Pole
Enclosure NEMA 3R Steel
Action DPST
Voltage null
