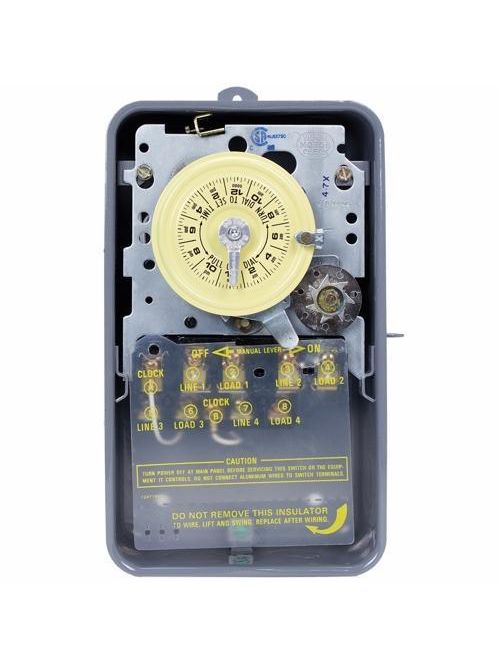

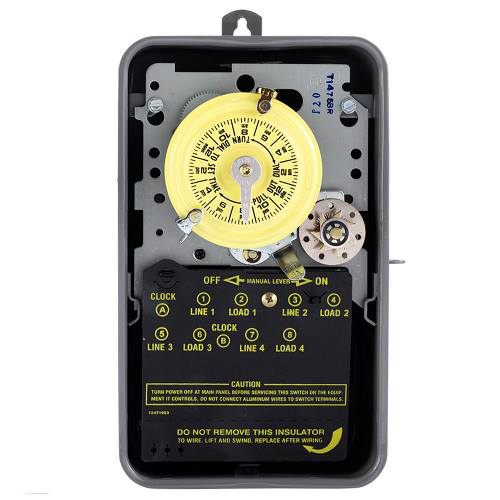

Intermatic T1475BR NEMA 3R Steel Case 480 VAC 60 Hz 40 Amp 4PST Electromechanical Time Switch with Clock Motor Terminal
Product image thumbnail 0
Product image thumbnail 1
$375.36/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # T1475BR
North Coast Part # 66014

Features & Applications

Features

  • Controls loads up to 40 A per pole
  • Direct 24-Hour control of most loads
  • Up to 10 ON/OFF operations each day
  • Minimum ON/OFF times of one hour
  • Manual override
  • One ON and one OFF tripper and three day-skipper screws included

Applications

  • Indoor/Outdoor Lighting
  • Pool Heaters
  • Pumps
  • Blowers
  • Conveyors
  • Electric Fences
  • Fans
  • Filters
  • Signs
  • Various Other Electrical Loads
  • Commercial
  • Industrial
  • Residential

Specifications

  • Minimum ON/OFF Times: 1 hour
  • Maximum ON/OFF Operations: 10
  • Input Voltages Display: 480 VAC, 60 Hz
  • Operation Mode: 24-hours
  • Has Override Switch: No
  • Electronic Ballast: 16 A, 277 VAC, 60 Hz
  • Motor (Single-Phase): 2 HP, 24 FLA, 120 VAC, 60 Hz 5 HP, 28 FLA, 240 VAC, 60 Hz
  • Motor (Three-Phase): 10 HP, 28 FLA, 240 VAC, 60 Hz 7 1/2 HP, 28 FLA, 208 VAC, 60 Hz
  • Maximum Power Consumption (W): 3 W
  • Operating Temperature Max (°C): 54
  • Operating Temperature Max (F): 130
  • Operating Temperature Min (°C): -40
  • Operating Temperature Min (F): -40
  • Wire Size Max: #8 AWG
  • Wire Size Min: #14 AWG
  • Enclosure Type: Outdoor Type 3R Metal
  • Product Height (in): 10.125
  • Product Height (mm): 257.2
  • Product Width (in): 6.5
  • Product Width (mm): 165.1
  • Product Depth (in): 3.625
  • Product Depth (mm): 92.1
  • Warranty: 1-year

Documents & Downloads

Product Rating


Related Accessories and Parts

  • 156T1948A: Trippers for T170, T1400, T1800 Series Includes 1 ON, 1 OFF, and 1 ON with Skipper Extension
  • 156T3085A: Skipper Screws for T170 Series, T1400 Series, and T1800 Series
  • 156T1978A: 1 Set of ON/OFF Trippers for T100, T7000, and WH40
  • WG1573-10D: 208-277 VAC, 60 Hz Motor for T102, T104, T106, T172, T174, WH40

Overview

UPC 07827517909
GTiN 00078275179097
Warranty Length 1 yr
Width 6.5 in
Operating Temperature -40 To 54 C
Voltage 480 Volt
Type Mechanical
Applications Commercial, Industrial, Residential, Outdoor, HVACR
Mounting Type Wall Mount
Depth 3.625 in
Height 10.125 in
Frequency 60 Hz
Wattage 3 Watt
Input Voltage 480 V
Family Brand Name Intermatic
Contact Configuration 4 NO
Max Operating Temperature 130 degrees F
Min Operating Temperature -40 degrees F
Max Wire Size 8 AWG
Min Wire Size 14 AWG
Contact Rating 40 AMP @ 120 - 480 VAC (Resistive), 40 AMP @ 120/240/277 VAC (Tungsten, Inductive)
Number of Poles 4 Pole
Enclosure NEMA 3R Steel
Action 4PST
