Intermatic T40000R4 NEMA 3R Load Center 120/240 VAC 60 Hz 125 Amp DPST Control System

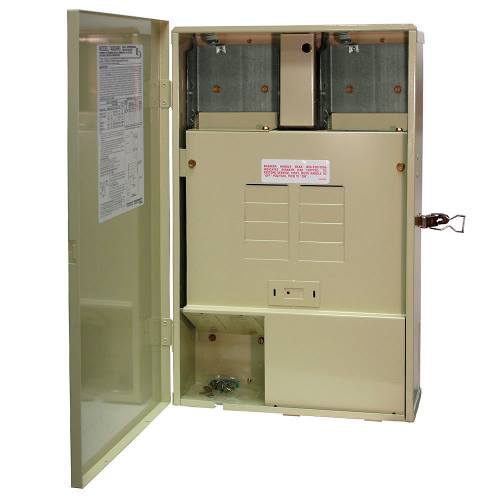

Product image thumbnail 0

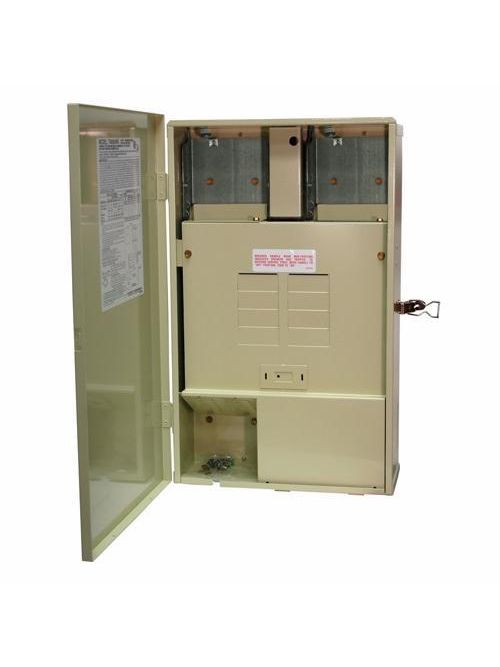

Product image thumbnail 1
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # T40000R4
North Coast Part # 264958

Features & Applications


  • Comes with an 8 or 16 circuit breaker base, equipment grounding bar, and optional mechanical time switch(es)
  • Reduces installation costs
  • All-in-one electrical load center eliminates the need for additional service panels
  • Accepts any combination of PF1000M Series, P1403ME, P1353ME, P4043ME, P4243ME, T100M Series, or RC2000M series mechanisms
  • Fully compatible with all electrical requirements for pool/spa installations
  • Load center dead front has four knockouts for switches or GFCIs (Note: T40000R4 has one knockout)
  • Wiring devices may be installed in these Load Centers with the use of Standoffs, sold separately


  • Pumps
  • Lighting


  • Maximum ON/OFF Operations: 0
  • Has Override Switch: No
  • Number of Trippers Included: 0
  • Number of Circuits: 0
  • Operating Temperature Max (°C): 54
  • Operating Temperature Max (F): 130
  • Operating Temperature Min (°C): -40
  • Operating Temperature Min (F): -40
  • Warranty: 1-year

System Includes (1)

  • T40000R: 125 A Pool/Spa Type 3R Load Center | Qty: 1

Documents & Downloads

Product Rating

Related Accessories and Parts

  • 156T1978A: 1 Set of ON/OFF Trippers for T100, T7000, and WH40
  • 21T156A: Spacer-Standoff, 3" long - 4 pack
  • 21T166A: Spacer-Standoff, 3" long - 2 pack
  • 124--00066: Insulator for 3-Circuit Timers


UPC 07827504307
GTiN 00078275043077
Warranty Length 1 yr
Size 20-3/4 HEIGHT X 12-3/4 WIDTH X 4-1/2 DEPTH IN, 508 HEIGHT X 304 WIDTH X 101 DEPTH MM
Operating Temperature -40 To 130 F
Type Load Center
Applications Pool and Spa Equipment Control
Mounting Type Wall Mount
Standard CCSAus Certified
Frequency 60 Hz
Family Brand Name Intermatic
Number of Phases 1 Phase
Enclosure Rating Outdoor
Amperage 125 Amp
Max Operating Temperature 130 degrees F
Min Operating Temperature -40 degrees F
Environmental Conditions Outdoor
Enclosure Type 3R
