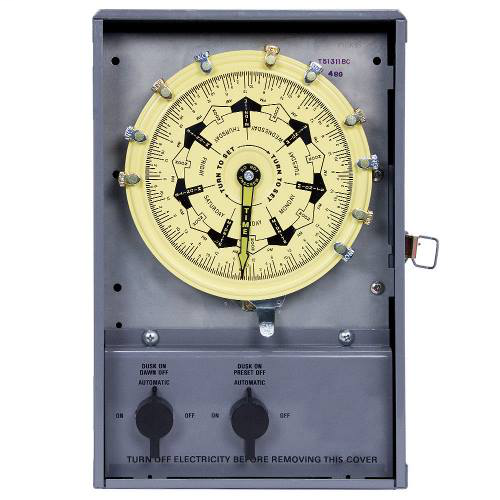

INT-MAT T51211BC NEMA 1 - 125 V (2)

Features & Applications

Features

• Includes photocontrol initiated/time switch terminated control
• Enable different ON/OFF programs each day of the week
• Recommended for applications needing to turn a load ON at dusk and OFF at a preset time
• Minimum of 16-hour carry-over for maintaining preset schedules during power failures
• Carry-over automatically rewinds when power resumes
• Only one hour of rewinding time required for every two hours of power outage
• Light level adjustment
• Single-pole double-throw switches and manual circuit bypass switches
• Controls the contactor coil circuit only
• Type 1 rated indoor metal enclosure

Applications

• Exterior Sign Lighting
• Façade Lighting
• Exterior Lighting
• Outdoor Lighting
• Electrical Pumps
• Motors

Specifications

• Minimum ON/OFF Times: 3.5 hours
• Maximum ON/OFF Operations: 28
• Input Voltages Display: 120 VAC, 60 Hz
• Operation Mode: 7-day
• Has Override Switch: No
• Backup Protection Time: 16 Hours
• Resistive: 15 A, 120-250 VAC, 60 Hz
• Tungsten: 150 W, 120 VAC, 60 Hz
• Pilot Duty: 420 VA, 120 VAC, 60 Hz
• Motor: 1/2 HP, 125-250 VAC, 60 Hz
• Maximum Power Consumption (W): 3 W
• Operating Temperature Max (°C): 54
• Operating Temperature Max (F): 130
• Operating Temperature Min (°C): -40
• Operating Temperature Min (F): -40
• Wire Size Max: #10 AWG
• Wire Size Min: #18 AWG
• Enclosure Type: Indoor Type 1 Metal
• Product Height (in): 10
• Product Height (mm): 254
• Product Width (in): 6.5
• Product Width (mm): 165.1
• Product Depth (in): 4
• Product Depth (mm): 101.6
• Warranty: 1-year

Documents & Downloads

Product Rating

Related Accessories and Parts

• 156T2548A: 7 Sets of ON/OFF Trippers for T7400 and T7800 Series
