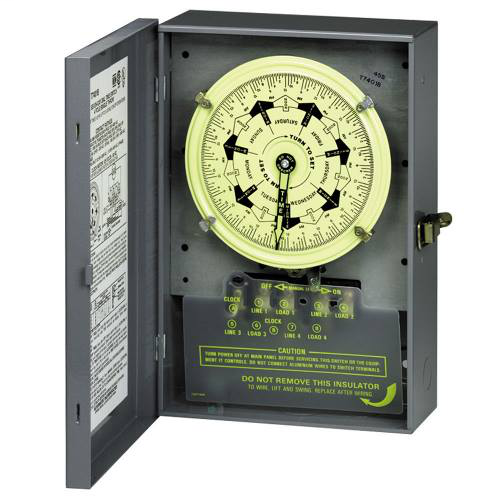

Intermatic T7802B NEMA 1 Steel Case 208 to 277 VAC 60 Hz 40 Amp DPDT Electromechanical Time Switch
$297.81/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # T7802B
North Coast Part # 426383

Features & Applications

Features

  • Different ON/OFF programs each day of the week
  • True 7-day load control with minimum ON/OFF time of 3-1⁄2 hours
  • Separate clock motor terminals for switching loads not on line voltage
  • Carry-over automatically rewinds when power resumes
  • Minimum of 16-hour carry-over for maintaining preset schedules during power failures
  • Available with Type 3R rated outdoor metal enclosure or Type 1 rated indoor metal in gray finish with separate grounding terminal

Applications

  • Heating
  • Air Conditioning
  • Pumps
  • Indoor/Outdoor Lighting
  • Motors
  • Signs
  • Filters
  • Fans

Specifications

  • Minimum ON/OFF Times: 3.5 hours
  • Maximum ON/OFF Operations: 28
  • Input Voltages Display: 208-277 VAC, 60 Hz
  • Operation Mode: 7-day
  • Has Override Switch: No
  • Resistive: 40 A, 120-480 VAC, 60 Hz
  • Inductive: 40 A, 120-277 VAC, 60 Hz
  • Electronic Ballast: 16 A, 277 VAC, 60 Hz
  • Tungsten: 40 A, 120-277 VAC, 60 Hz
  • Pilot Duty: 1000 VA, 120-277 VAC, 60 Hz
  • Motor (Single-Phase): 2 HP, 24 FLA, 120 VAC, 60 Hz 5 HP, 28 FLA, 240 VAC, 60 Hz
  • Motor (Three-Phase): 10 HP, 28 FLA, 240 VAC, 60 Hz 7 1/2 HP, 28 FLA, 208 VAC, 60 Hz
  • Maximum Power Consumption (W): 3 W
  • Operating Temperature Max (°C): 54
  • Operating Temperature Max (F): 130
  • Operating Temperature Min (°C): -40
  • Operating Temperature Min (F): -40
  • Wire Size Max: #8 AWG
  • Wire Size Min: #14 AWG
  • Enclosure Type: Indoor Type 1 Metal
  • Product Height (in): 13.125
  • Product Height (mm): 333.3
  • Product Width (in): 9
  • Product Width (mm): 228.9
  • Product Depth (in): 3.75
  • Product Depth (mm): 95.25
  • Warranty: 1-year

Documents & Downloads

Product Rating


Related Accessories and Parts

  • 156T2548A: 7 Sets of ON/OFF Trippers for T7400 and T7800 Series

Categories

Overview

UPC 07827546421
GTiN 00078275464216
Warranty Length 1 yr
Width 9 in
Size 12-1/2 HEIGHT X 8-1/4 WIDTH X 4 DEPTH IN, 31.7 HEIGHT X 21.0 WIDTH X 10.2 CM
Operating Temperature -40 To 130 F
Type Electromechanical
Applications Commercial, Industrial, Residential, Indoor, HVACR
Mounting Type Wall Mount
Depth 3.75 in
Height 13.125 in
Frequency 60 Hz
Connection Type Screw Terminal
Wattage 3 Watt
Input Voltage 208-277 V
Family Brand Name Intermatic
TC Connection Screw Terminal
Contact Configuration NO/NC
Max Operating Temperature 130 degrees F
Min Operating Temperature -40 degrees F
Max Wire Size 8 AWG
Min Wire Size 14 AWG
Contact Rating 40 AMP @ 120 - 480 VAC
Number of Poles 2 Pole
Enclosure NEMA 1 Steel
Action DPDT
Voltage null
