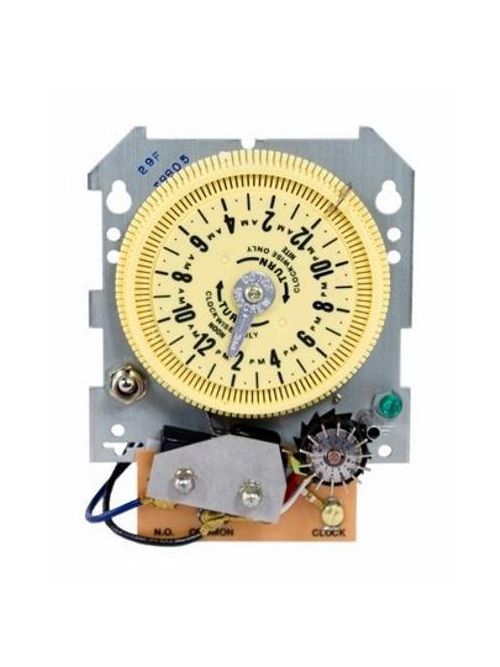

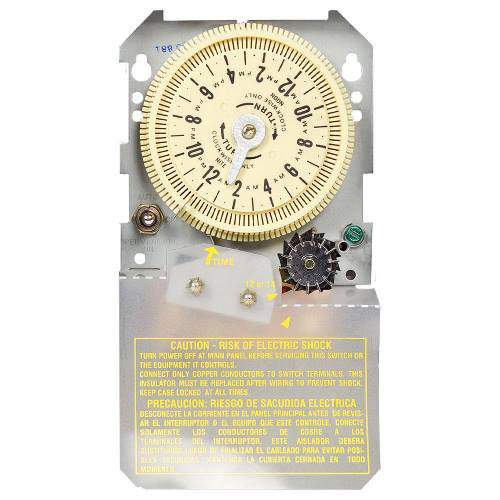

INT-MAT T8805M101C Mechanism - 125
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # T8805M101C
North Coast Part # 1685403

Features & Applications


  • Up to 44 ON/OFF settings per day
  • Water metering increments from 12 minutes to 20 hours and 45 minutes
  • 14-Day skipper enables irrigation to be omitted on selected day(s)
  • Provides for every other day operation
  • ON/OFF/AUTO switch enables shutdown during rainy days and extended watering during dry periods without disturbing the cycle set on dial


  • Multistation Hydro-indexing Valves
  • Greenhouses, Lawn Sprinklers
  • Irrigation Control
  • Drip Irrigation Systems


  • Mechanism Type: Analog/Mechanical
  • Tripper Actuating Time: 12 min
  • Maximum ON/OFF Times: 20 hours, 45 minutes
  • Minimum ON/OFF Times: 12 min
  • Maximum ON/OFF Operations: 44
  • Switch Type: DPST
  • Warranty: 1-year limited

Documents & Downloads

Product Rating

Related Accessories and Parts

  • 133T700A: Micro Switch for T8800 and R8800 Series
  • 156T1950A: Set of 12 Trippers for T1900, T2000, C8800, R8800 and T8800 Series
  • 156T1954A: 14 Skipper Pins for R8800, and T8800 Series


UPC 07827511822
Item Long Description These irrigation timers are designed to permit one to 44 "ON" operations every 24 hours and provide watering increments down to 12 minutes or up to 20 hours and 45 minutes to ensure proper watering increments. These models also allow for biweekly scheduling with the convenient 14-day skipper for maximum water conservation and odd/even day compliance.
GTiN 00078275118225
Warranty Length 1 yr
Operating Temperature -40 To 130 F
Voltage 120 Volt
Type Sprinkler/Irrigation
Standard CCSAus Certified
Connection Type Screw Terminal
Switch Type DPST
Family Brand Name Intermatic
TC Connection Screw Terminal
Contact Configuration 1 NO
Amperage 15 Amp
Number of Poles 1 Pole
Action SPST
