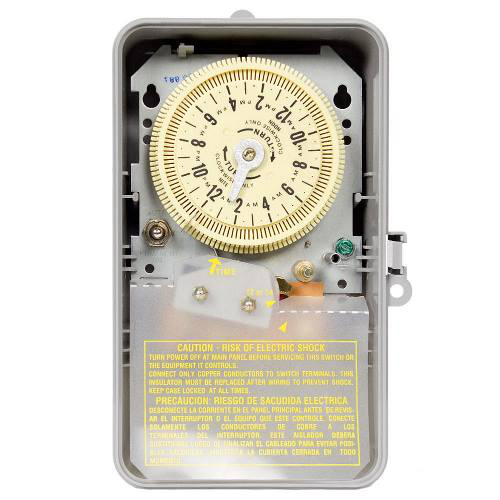

Intermatic T8805P101C NEMA 3R Plastic Case 125 VAC 60 Hz 15 Amp SPST Electromechanical Time Switch
Product image thumbnail 0
Product image thumbnail 1
$191.45/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # T8805P101C
North Coast Part # 265212

Features & Applications

Features

  • Up to 44 ON/OFF settings per day
  • Water metering increments from 12 minutes to 20 hours and 45 minutes
  • 14-Day skipper enables irrigation to be omitted on selected day(s)
  • Provides for every other day operation
  • ON/OFF/AUTO switch enables shutdown during rainy days and extended watering during dry periods without disturbing the cycle set on dial
  • Type 3R plastic indoor/outdoor enclosure

Applications

  • Multistation Hydro-indexing Valves
  • Greenhouses, Lawn Sprinklers
  • Irrigation Control
  • Drip Irrigation Systems

Specifications

  • Mechanism Type: Analog/Mechanical
  • Tripper Actuating Time: 12 min
  • Maximum ON/OFF Times: 20 hours, 45 minutes
  • Minimum ON/OFF Times: 12 min
  • Maximum ON/OFF Operations: 44
  • Switch Type: SPST
  • Warranty: 1-year limited

Documents & Downloads

Product Rating

Related Accessories and Parts

  • 133T700A: Micro Switch for T8800 and R8800 Series
  • 156T1950A: Set of 12 Trippers for T1900, T2000, C8800, R8800 and T8800 Series
  • 156T1954A: 14 Skipper Pins for R8800, and T8800 Series

Categories

Overview

UPC 07827570075
GTiN 00078275700758
Warranty Length 1 yr
Operating Temperature -40 To 130 F
Voltage 120 Volt
Type Sprinkler and Irrigation Electromechanical
Applications Sprinkler/Irrigation Control
Mounting Type Bracket Mount
Standard CCSAus Certified
Frequency 60 Hz
Connection Type Screw Terminal
Switch Type SPST
Family Brand Name Intermatic
TC Connection Screw Terminal
Contact Configuration 1 NO
Amperage 15 Amp
Number of Poles 1 Pole
Enclosure NEMA 3R Plastic
Action SPST
