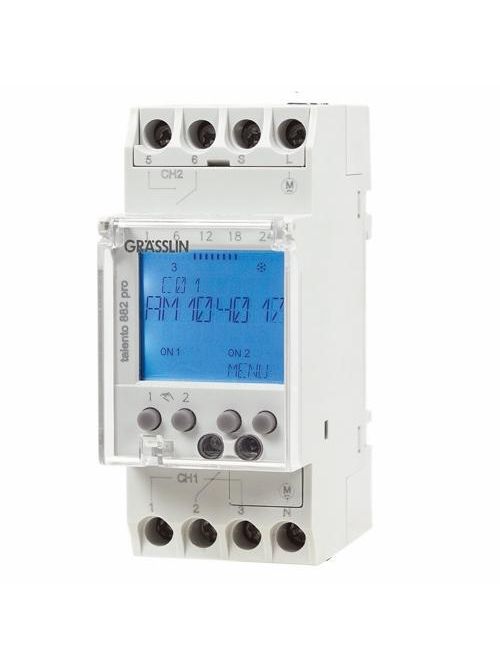

INT-MAT TALENTO882 TALENTO882PRO 36
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$475.78/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # TALENTO882
North Coast Part # 996745

Features & Applications

Features

  • Cumulative load-monitoring hour counter with service indicator keeps track of runtime for maintenance schedules
  • Automatically detects and adjusts input voltages (24 VAC/VDC - 240 VAC)
  • Non-volatile memory (EEPROM)
  • Random program switching function
  • Assignable external input for countdown, override, or pulse function
  • Weekly, annual, and holiday scheduling (ON/OFF, pulse, cycle)
  • Backlit LCD with load status indicator
  • Automatic Daylight Saving Time adjustment
  • Astronomic program scheduling (with OFF time capability)
  • 400 memory spaces
  • Replaceable battery provides backup with a 10-year carry-over
  • Shortest switching time: 1-second
  • Manual switch: automatic/override/fixed ON/OFF
  • Security features include lockable keypad cover and PIN code
  • 2-Circuit independent programming
  • Optional PC data transfer via IR remote interface (Talento Taxxi-P)

Applications

  • Lighting
  • Heating
  • Air Conditioning
  • Pumps
  • Motors
  • General Electrical Circuits

Specifications

  • Mechanism Type: Digital/Electrical
  • Input Voltages Display: 120-240 VAC, 50/60 Hz
  • Maximum Power Consumption (VA): 3.7
  • Switch Type: SPDT, SPST
  • Operation Features: Astronomic, Holiday, Pulse, Cycle
  • Operation Mode: 7-day, 24-hour, 365-day, Countdown, Cycle
  • General Purpose (NC): 10 A, 240 VAC, 50/60 Hz
  • General Purpose (NO): 10 A, 240 VAC, 50/60 Hz
  • Resistive (NC): 16 A, 240 VAC, 50/60 Hz
  • Resistive (NO): 16 A, 240 VAC, 50/60 Hz
  • Electronic Ballast (NC): 8 A, 240 VAC, 50/60 Hz
  • Tungsten (NC): 10 A, 240 VAC, 50/60 Hz
  • Tungsten (NO): 10 A, 240 VAC, 50/60 Hz
  • Pilot Duty (NC): B300, 240 VAC, 50/60 Hz
  • Pilot Duty (NO): B300, 240 VAC, 50/60 Hz
  • Operating Temperature Max (C): 55
  • Operating Temperature Max (F): 131
  • Operating Temperature Min (C): -10
  • Operating Temperature Min (F): 14
  • Wire Size Max: #12 AWG
  • Wire Size Min: #16 AWG
  • Cut-Out Height (in): 1.73
  • Cut-Out Height (mm): 44
  • Cut-Out Width (In): 1.37
  • Cut-Out Width (mm): 35
  • Shipping Weight (kg): 0.166
  • Shipping Weight (lbs): 0.366
  • Warranty: 1-year limited

Overview

UPC 07827514107
GTiN 00078275141070
Warranty Length 1 yr
Size 3.35 HEIGHT X 1.38 WIDTH IN, 85 HEIGHT X 35 WIDTH MM
Operating Temperature 131 degrees F
Voltage 12 Volt
Type Electronic
Applications For Machinery, Agricultural, HVACR
Mounting Type DIN Rail Mount
Wire Size 16-10 AWG
Standard CE,CULus Listed Component,HVACR
Shipping Weight 0.366 lb
Wattage 2400 Watt
Switch Type SPDT,SPST
Input Voltage 120-240 V
Family Brand Name Grasslin
Contact Configuration 1 NO, SPST
Amperage 16 Amp
Max Operating Temperature 131 degrees F
Min Operating Temperature 14 degrees F
Max Wire Size 12 AWG
Min Wire Size 16 AWG
Contact Rating 16 AMP @ 240 VAC (Resistive), 10 AMP (General Purpose), 10 AMP (Tungsten), 8 AMP (Standard Ballast)
Number of Poles 1 Pole
Enclosure Type 1,Type 3R
Action SPST
Sub Brand Grasslin
Temperature Rating -10 to 55 C
Enclosure Type NEMA 1, 3R
Blade Dimensions 35 mm W x 85 mm H
