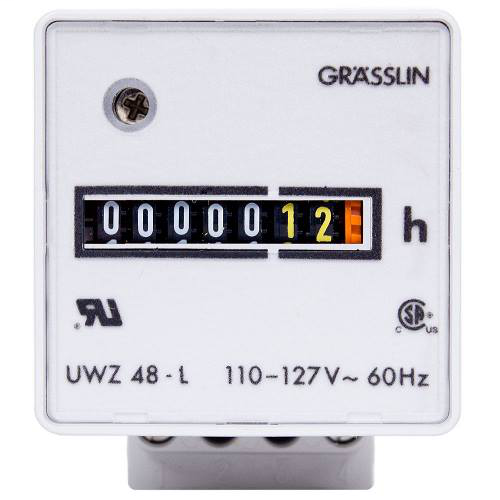

INT-MAT UWZ48-120U 120V 60Hz SURFAC
$84.06/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # UWZ48-120U
North Coast Part # 763103

Features & Applications

Applications

  • Industrial Control Panels
  • Pumps
  • Machinery
  • Heaters

Specifications

  • Input Voltages Display: 120 VAC, 60 Hz
  • Maximum Power Consumption (VA): 1
  • Bezel Diameter (mm): 0
  • Bezel Height (in): 1.89
  • Bezel Height (mm): 48
  • Bezel Width (in): 1.89
  • Bezel Width (mm): 48
  • Capacity (Hours): 99999.99
  • Digits Height (in): 0.16
  • Digits Height (mm): 4.1
  • Operating Temperature Max (°C): 72
  • Operating Temperature Max (F): 160
  • Operating Temperature Min (°C): -40
  • Operating Temperature Min (F): -40
  • Panel Opening Diameter (mm): 0
  • Panel Opening Height (mm): 0
  • Panel Opening Width (mm): 0
  • Mounting Depth (mm): 0
  • Mounting Description: plug-in
  • Mounting Options: Surface
  • Environmental Rating: IP20
  • Hour Meter Material: Plastic
  • Model Number: UWZ48-120U
  • Ordering Instructions: UWZ48+120+U

Documents & Downloads

Product Rating




Related Accessories and Parts

  • 691: Housing Base for UWZ48 Surface Mount

Categories

Overview

UPC 61457321010
GTiN 00614573210102
Voltage 120 Volt
Type Voltage/Frequency
Applications Indoor Application
Mounting Type Surface
Weight 2.5 OZ
Standard CE,CSA,HVACR,UL Recognized
Capacity 99999.99 HR
Frequency 60 Hz
Input Voltage 120 V
Temperature Rating 160 degrees F
Family Brand Name Intermatic
Power Consumption 1 VA
Max Operating Temperature 160 degrees F
Blade Dimensions 1.89 LENGTH X 1.77 WIDTH X 2.72 DEPTH IN, 48 LENGTH X 45 WIDTH X 69 DEPTH MM
Min Operating Temperature -40 degrees F
IP Rating IP20
Display Type Analog
