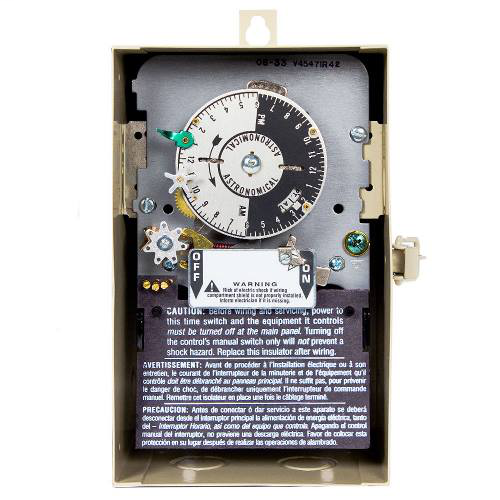

Intermatic V45471CR42 NEMA 3R Steel Case 120 VAC 60 Hz 40 Amp 3PST Electromechanical Time Switch with Carryover
Product image thumbnail 0
Product image thumbnail 1
$1,614.96/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # V45471CR42
North Coast Part # 157899

Features & Applications

Features

  • Adjusts for seasonal changes
  • 3PST switch configuration
  • Three skipper screws furnished
  • Independent clock motor terminals
  • Only one hour required to rewind the carry-over for every two hours of outage
  • Type 3R metal enclosure

Applications

  • Parking Lot Lighting
  • Walkway Lighting
  • Landscape Lighting
  • Storefronts
  • Outdoor Lighting

Specifications

  • Mechanism Type: Analog/Mechanical
  • Maximum ON/OFF Operations: 0
  • Input Voltages Display: 120 VAC, 60 Hz
  • Switch Type: 3-SPST
  • Operation Features: Astronomic
  • Warranty: 1-year limited

Documents & Downloads

Product Rating


Overview

UPC 07827511867
GTiN 00078275118676
Warranty Length 1 yr
Size 8-1/4 HEIGHT X 5-1/4 WIDTH X 4-3/4 DEPTH IN, 20.9 HEIGHT X 13.3 WIDTH X 12.0 DEPTH CM
Operating Temperature -40 To 130 F
Voltage 120 Volt
Type Electromechanical
Applications Lighting
Mounting Type Wall Mount
Standard CCSAus Certified,CULus Listed
Wattage 5 Watt
Switch Type 3-SPST
Input Voltage 120 V
Family Brand Name Intermatic
Contact Configuration 3 NO
Contact Rating 40 AMP @ 120 - 277 VAC, 20 AMP @ 120 - 277 VAC (Inductive), 40 AMP @ 120 VAC (Tungsten)
Number of Poles 3 Pole
Enclosure NEMA 3R Steel
Action 3PST
