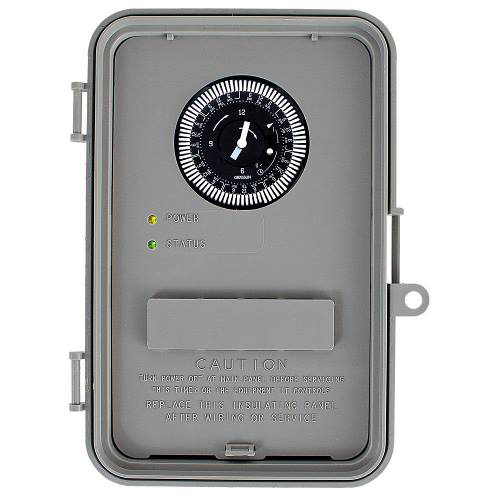

INT-MAT WHAVQ7 WATER HEATER TIMER,
$225.97/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # WHAVQ7
North Coast Part # 1011264

Features & Applications

Features

  • 40 A rating
  • Captive trippers - cannot be lost
  • 24-hour or 7-day models available
  • Three-way ON/OFF/AUTO manual override
  • Power and status LED indicators
  • Self-recharging battery backup with 7-day carry-over
  • Rainproof UL Type 3R enclosure
  • Saves energy by shutting hot water heaters OFF during "off peak periods"
  • Autovoltage selection 120-277 VAC
  • Easy-to-read clock face

Applications

  • Save Energy and Maximize Electric Heated Hot Water Usage

Specifications

  • Maximum ON/OFF Operations: 48
  • Voltage Selection Type: Auto Voltage
  • Operation Mode: 7-days
  • Input Voltages: 120-277 VAC, 50/60 Hz
  • Switch Type: DPDT
  • Backup Type: Battery
  • Enclosure Type: Indoor/Outdoor Type 3R Plastic
  • Has Captive Trippers: No
  • Number of Trippers Included: 84
  • Has Override Switch: No
  • Warranty: 1-year limited

Documents & Downloads

Product Rating


Categories

Overview

UPC 07827514100
GTiN 00078275141001
Warranty Length 1 yr
Operating Temperature 104 degrees F
Type Water Heater Control
Applications Heavy-Duty, Commercial, Industrial, Outdoor, HVACR
Mounting Type Wall Mount
Standard CULus Listed,HVACR
Connection Type Screw Box Lug
Wattage 7,500/10,000 Watt
Switch Type DPDT
Family Brand Name Intermatic
Enclosure Rating 0 - 95 RH Non-Condensing
TC Connection Screw Box Lug
Contact Configuration 2 NO/2 NC
Contact Rating 40 AMP @ 250 VAC (Resistive NO) , 30 AMP @ 250 VAC (Resistive NC)
Number of Poles 2 Pole
Enclosure Type 3R
Action DPDT
Operating Cycles 50k
Voltage null
