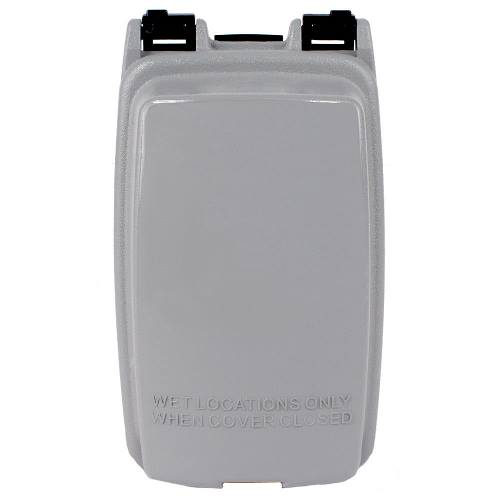

Intermatic WP1000GC 2-1/4 Deep 1-Gang Vertical Weatherproof Receptacle Cover with Duplex and GFCI Inserts
$16.38/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # WP1000GC
North Coast Part # 219199

Features & Applications

Features

  • Complies with 2014 NEC Article 314.15 for damp and wet locations
  • Exceeds CEC Article 26-702
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
  • 1⁄8" (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws
  • Three inserts provided with all models that allow each model to meet multiple installations (up to 8 configurations)
  • Max cord size: (2) #14 AWG or (1) #12 AWG
  • Mounts vertically or horizontally
  • Warranty: 1-year limited

Applications

  • Industrial
  • Commercial
  • Manufacturing
  • Residential
  • Agricultural
  • Signage
  • Athletic Fields

Specifications

  • Gang Type: Single
  • Color: Gray
  • Is Extra Duty Rated: No
  • Hinge Direction: Vertical
  • Insert Types Included: WP17
  • Number of Included Inserts: 3
  • Weatherproof Cover Material: UV Stabilized Plastic
  • Product Height (in): 5 1/2
  • Product Height (mm): 139.7
  • Product Width (in): 3 4/5
  • Product Width (mm): 96.8
  • Product Depth (in): 2 1/4
  • Product Depth (mm): 57
  • Warranty: 1-year limited

Documents & Downloads

Product Rating


Related Accessories and Parts

  • WP17: Single-Gang Inserts

Overview

UPC 07827504399
GTiN 00078275043992
Warranty Length 1 yr
Width 3 4/5 in
Size 2-1/4 DEPTH IN, 57.15 DEPTH MM
Color Gray
Type Weatherproof Receptacle Cover
Material PolyCarbonate
Applications Schools, Residential, Industrial, Sports Fields, Commercial, Agricultural, Signage
Mounting Type Vertical
Depth 57 mm
Height 139.7 mm
Cable Size (2) 14 Gauge, (1) 12 Gauge
Shape Rectangle
Family Brand Name Intermatic
Insulation Material Neoprene Gasket
Construction Heavy-Duty Polycarbonate
Number of Outlets 1
Gang Type Single
Construction Features Heavy-Duty Polycarbonate
