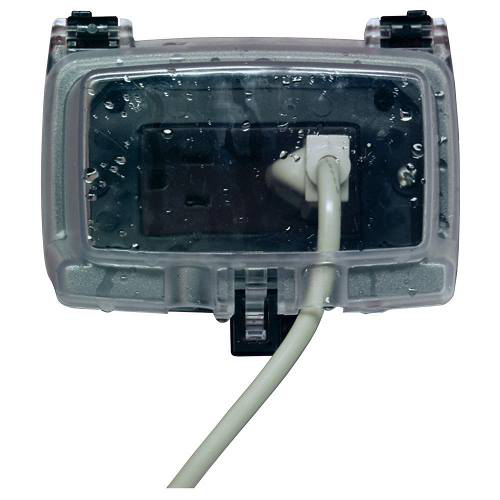

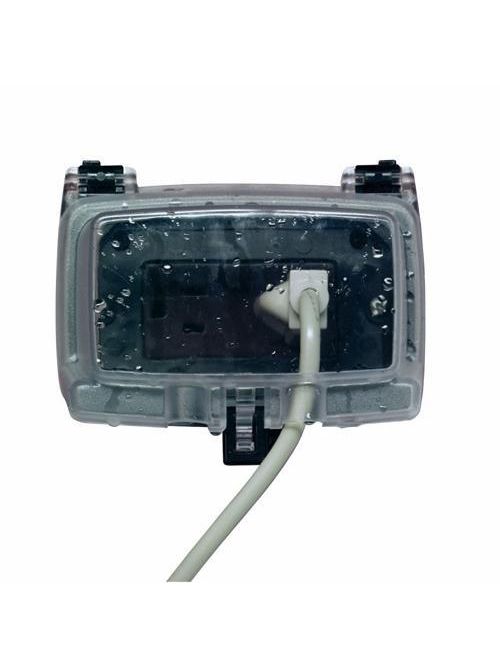

Intermatic WP1000HC 1-Gang 2-1/4 Inch Horizontal Hinge Clear Weatherproof Cover with Guard Insert
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # WP1000HC
North Coast Part # 219286

Features & Applications


  • Complies with 2014 NEC Article 314.15 for damp and wet locations
  • Exceeds CEC Article 26-702
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
  • 1⁄8" (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws
  • Three inserts provided with all models that allow each model to meet multiple installations (up to 8 configurations)
  • Max cord size: (2) #14 AWG or (1) #12 AWG
  • Mounts vertically or horizontally
  • Warranty: 1-year limited


  • Industrial
  • Commercial
  • Manufacturing
  • Residential
  • Agricultural
  • Signage
  • Athletic Fields


  • Gang Type: Single
  • Color: Clear
  • Is Extra Duty Rated: No
  • Hinge Direction: Horizontal
  • Insert Types Included: WP17
  • Number of Included Inserts: 3
  • Weatherproof Cover Material: UV Stabilized Plastic
  • Product Height (in): 4 1/4
  • Product Height (mm): 108
  • Product Width (in): 5
  • Product Width (mm): 127
  • Product Depth (in): 2 1/4
  • Product Depth (mm): 57
  • Warranty: 1-year limited

Documents & Downloads

Product Rating

Related Accessories and Parts

  • WP17: Single-Gang Inserts


UPC 07827502808
Item Long Description Plastic In-Use Weatherproof Covers are easy to install and include adhered gasket, mounting screws, base, cover assembly, and inserts to meet the needs of a variety of applications.
GTiN 00078275028081
Warranty Length 1 yr
Width 5 in
Size 2-1/4 DEPTH IN, 57.15 DEPTH MM
Color Clear
Type Weatherproof Receptacle Cover
Material PolyCarbonate
Applications Schools, Residential, Industrial, Sports Fields, Commercial, Agricultural, Signage
Mounting Type Horizontal
Depth 2 1/4 in
Height 108 mm
Cable Size (2) 14 Gauge, (1) 12 Gauge
Shape Rectangle
Family Brand Name Intermatic
Insulation Material Neoprene Gasket
Construction Heavy-Duty Polycarbonate
Number of Outlets 1
Gang Type Single
Construction Features Heavy-Duty Polycarbonate
