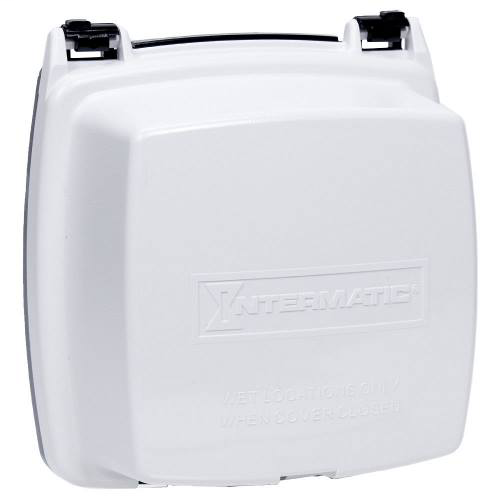

Manufacturer Intermatic
Mfg Catalog # WP1020WC
North Coast Part # 1099419

Features & Applications

Features

  • Complies with 2014 NEC Article 314.15 for damp and wet locations
  • Exceeds CEC Article 26-702
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
  • 1⁄8" (3 mm) thick neoprene gasket with slits for mounting screws
  • Two inserts provided with all models for multiple installations
  • Max cord size: (2) #14 AWG or (1) #12 AWG, WP1050 (2) #14 AWG or (1) #10 AWG
  • Warranty: 1-year limited

Applications

  • Industrial
  • Commercial
  • Manufacturing
  • Residential
  • Agricultural
  • Signage
  • Athletic Fields

Specifications

  • Gang Type: Double
  • Color: White
  • Is Extra Duty Rated: No
  • Hinge Direction: Vertical
  • Insert Types Included: WP101, WP102
  • Number of Included Inserts: 2
  • Weatherproof Cover Material: UV Stabilized Plastic
  • Product Height (in): 5 1/2
  • Product Height (mm): 139.7
  • Product Width (in): 5
  • Product Width (mm): 127
  • Product Depth (in): 2 1/4
  • Product Depth (mm): 57
  • Warranty: 1-year limited

Documents & Downloads

Product Rating


Related Accessories and Parts

  • WP101: Double-Gang Duplex
  • WP102: Double-Gang GFCI

Overview

UPC 07827514011
Item Long Description Plastic In-Use Weatherproof Covers are easy to install and include a gasket, mounting screws, base, cover assembly, and inserts to meet the needs of a variety of applications.
GTiN 00078275140110
Warranty Length 1 yr
Width 5 in
Size 2-1/4 DEPTH IN, 57.15 DEPTH MM
Color White
Type Weatherproof Receptacle Cover
Material PolyCarbonate
Applications Schools, Residential, Industrial, Sports Fields, Commercial, Agricultural, Signage
Mounting Type Vertical
Depth 2 1/4 in
Height 139.7 mm
Cable Size (2) 14 Gauge, (1) 12 Gauge
Standard 2008 NEC Article 406.8(B)(1),2011 NEC Article 406.9 (B1),UL/CSA Cold Impact Testing
Shape Rectangle
Family Brand Name Intermatic
Insulation Material Neoprene Gasket
Construction Heavy-Duty Polycarbonate
Number of Outlets 2
Gang Type Double
Construction Features Heavy-Duty Polycarbonate
