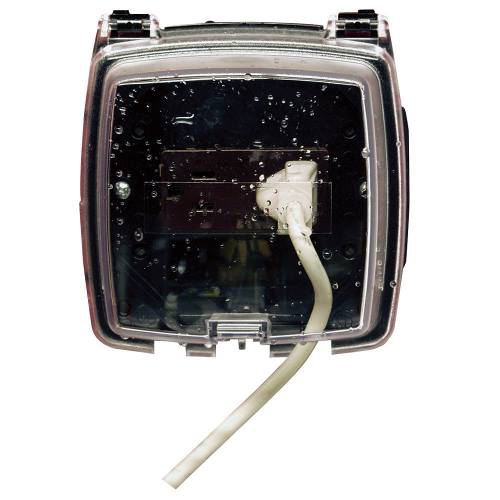

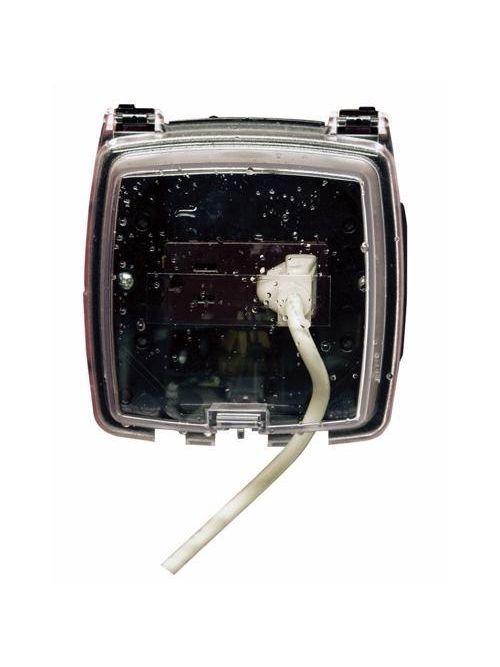

Intermatic WP1030C 2-Gang 3-1/8 Inch Vertical Hinge Clear Weatherproof Cover with Guard Insert
Product image thumbnail 0
Product image thumbnail 1
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # WP1030C
North Coast Part # 429

Features & Applications


  • Complies with 2014 NEC Article 314.15 for damp and wet locations
  • Exceeds CEC Article 26-702
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
  • 1⁄8" (3 mm) thick neoprene gasket with slits for mounting screws
  • Two inserts provided with all models for multiple installations
  • Max cord size: (2) #14 AWG or (1) #12 AWG, WP1050 (2) #14 AWG or (1) #10 AWG
  • Warranty: 1-year limited


  • Industrial
  • Commercial
  • Manufacturing
  • Residential
  • Agricultural
  • Signage
  • Athletic Fields


  • Gang Type: Double
  • Color: Clear
  • Is Extra Duty Rated: No
  • Hinge Direction: Vertical
  • Insert Types Included: WP101, WP102
  • Number of Included Inserts: 2
  • Weatherproof Cover Material: UV Stabilized Plastic
  • Product Height (in): 5 1/2
  • Product Height (mm): 139.7
  • Product Width (in): 5
  • Product Width (mm): 127
  • Product Depth (in): 3 1/8
  • Product Depth (mm): 79
  • Warranty: 1-year limited

Documents & Downloads

Product Rating

Related Accessories and Parts

  • WP101: Double-Gang Duplex
  • WP102: Double-Gang GFCI


UPC 07827500323
GTiN 00078275003231
Finish Untreated
Warranty Length 1 yr
Width 5 in
Size 3-1/4 DEPTH IN, 82.55 DEPTH MM
Color Clear White
Type Rectangular
Insulation Type Neoprene Gasket
Material Heavy Duty Polycarbonate
Applications Schools, Residential, Industrial, Sports Fields, Commercial, Agricultural, Signage
Mounting Type Vertical, Screw
Depth 82.55 mm
Height 139.7 mm
Cable Size (2) 14 Gauge, (1) 12 Gauge
Shape Rectangle
Family Brand Name Intermatic
Insulation Material Neoprene Gasket
Construction Heavy-Duty Polycarbonate
Enclosure Type NEMA 3R
Number of Outlets 2
Gang Type Double
Number of Gangs 1 or 2 Gang
Construction Features Heavy-Duty Polycarbonate
