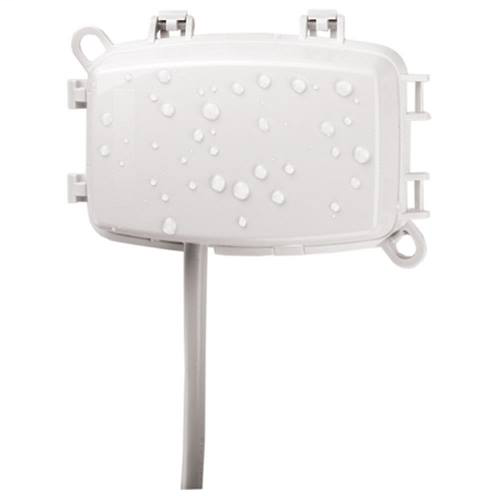

Intermatic WP1100WC 1-Gang Horizontal/Vertical Hinge 2-3/4 Inch Receptacle Cover with Guard Insert
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # WP1100WC
North Coast Part # 70513

Features & Applications


  • Complies with 2014 NEC Article 314.15 for damp and wet locations
  • Exceeds CEC Article 26-702
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
  • 1⁄8" (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws
  • Lockable hasp: All models accept up to 1⁄4" (6 mm) dia shank
  • Except WP3100C & WP3103C accept up to 1⁄8" (3 mm) dia shank
  • Three inserts provided with all models that allow each model to meet multiple installations (up to 16 configurations)
  • Max cord size: (2) #14 AWG or (1) #12 AWG
  • Mounts vertically or horizontally
  • Warranty: 1-year limited


  • Industrial
  • Commercial
  • Manufacturing
  • Residential
  • Agricultural
  • Signage
  • Athletic Fields


  • Gang Type: Single
  • Color: White
  • Is Extra Duty Rated: No
  • Hinge Direction: Horizontal, Vertical
  • Insert Types Included: WP17
  • Number of Included Inserts: 3
  • Weatherproof Cover Material: UV Stabilized Plastic
  • Product Height (in): 5 3/4
  • Product Height (mm): 146.6
  • Product Width (in): 4
  • Product Width (mm): 103.1
  • Product Depth (in): 2 3/4
  • Product Depth (mm): 70
  • Warranty: 1-year limited

Documents & Downloads

Product Rating

Related Accessories and Parts

  • WP17: Single-Gang Inserts


UPC 07827508789
Item Long Description Plastic In-Use Weatherproof Covers are easy to install and include adhered gasket, mounting screws, base, cover assembly, and inserts to meet the needs of a variety of applications.
GTiN 00078275087897
Warranty Length 1 yr
Width 4 in
Size 2-3/4 DEPTH IN, 69.85 DEPTH MM
Color White
Type Weatherproof Receptacle Cover
Material PolyCarbonate
Applications Residential, Industrial, Sports Fields, Commercial, Agricultural, Signage
Mounting Type Horizontal,Vertical
Depth 2 3/4 in
Height 146.6 mm
Cable Size (2) 14 Gauge, (1) 12 Gauge
Standard 2008 NEC Article 406.8,UL Certified For Type 3R,UL/CSA Cold Impact Testing
Shape Rectangle
Family Brand Name Intermatic
Insulation Material Neoprene Gasket
Construction Heavy-Duty Polycarbonate
Number of Outlets 1
Gang Type Single
Construction Features Heavy-Duty Polycarbonate
