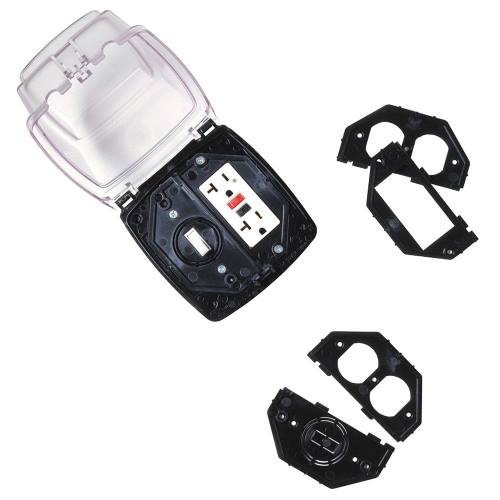

Intermatic WP1220C 2-Gang Vertical Hinge 2-1/4 Inch Receptacle Cover with Guard Insert
Product image thumbnail 0
Product image thumbnail 1
$17.37/ea
In Stock | 82 available at 18 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # WP1220C
North Coast Part # 14487

Features & Applications

Features

  • Complies with 2014 NEC Article 314.15 for damp and wet locations
  • Exceeds CEC Article 26-702
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
  • 1⁄8" (3 mm) thick neoprene gasket with slits for mounting screws
  • Six inserts provided with all models that allow each model to meet multiple installations (up to 70 configurations)
  • Max cord size: (2) #14 AWG or (1) #12 AWG, WP1250 (2) #14 AWG or (1) #10 AWG
  • Warranty: 1-year limited

Applications

  • Industrial
  • Commercial
  • Manufacturing
  • Residential
  • Agricultural
  • Signage
  • Athletic Fields

Specifications

  • Gang Type: Double
  • Color: Clear
  • Is Extra Duty Rated: No
  • Hinge Direction: Vertical
  • Insert Types Included: WP217
  • Number of Included Inserts: 6
  • Weatherproof Cover Material: UV Stabilized Plastic
  • Product Height (in): 5 1/2
  • Product Height (mm): 139.7
  • Product Width (in): 5
  • Product Width (mm): 127
  • Product Depth (in): 2 1/4
  • Product Depth (mm): 57
  • Warranty: 1-year limited

Documents & Downloads

Product Rating


Related Accessories and Parts

  • WP217: Double-Gang Inserts
> View Substitutes (1)

Overview

UPC 07827507269
GTiN 00078275072695
Length 139.7 mm
Finish Gloss
Warranty Length 1 yr
Width 127 mm
Size 2-1/4 DEPTH IN, 57.15 DEPTH MM
Color Clear
Type 2-Unit, Rectangular, Standard, Receptacle
Insulation Type Neoprene Gasket
Material Heavy Duty Polycarbonate
Applications Residential, Industrial, Sports Fields, Commercial, Agricultural, Signage, Schools
Mounting Type Vertical, Screw
Depth 57 mm
Height 139.7 mm
Cable Size (2) 14 Gauge, (1) 12 Gauge
Standard 2008 NEC Article 406.8,UL Certified For Type 3R,UL/CSA Cold Impact Testing
Shape Rectangle
Family Brand Name Intermatic
Insulation Material Neoprene Gasket
Construction Heavy-Duty Polycarbonate
Enclosure Type NEMA 3R
Number of Outlets 2
Gang Type Double
Construction Features Heavy-Duty Polycarbonate
