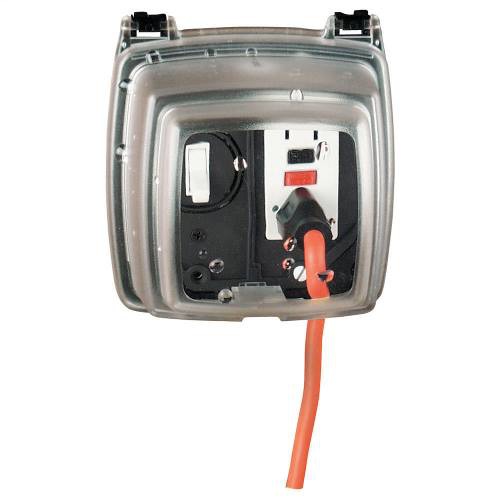

Intermatic WP1230C 2-Gang Vertical Hinge 3-1/8 Inch Receptacle Cover with Guard Insert
$23.43/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # WP1230C
North Coast Part # 15319

Features & Applications

Features

  • Complies with 2014 NEC Article 314.15 for damp and wet locations
  • Exceeds CEC Article 26-702
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
  • 1⁄8" (3 mm) thick neoprene gasket with slits for mounting screws
  • Six inserts provided with all models that allow each model to meet multiple installations (up to 70 configurations)
  • Max cord size: (2) #14 AWG or (1) #12 AWG, WP1250 (2) #14 AWG or (1) #10 AWG
  • Warranty: 1-year limited

Applications

  • Industrial
  • Commercial
  • Manufacturing
  • Residential
  • Agricultural
  • Signage
  • Athletic Fields

Specifications

  • Gang Type: Double
  • Color: Clear
  • Is Extra Duty Rated: No
  • Hinge Direction: Vertical
  • Insert Types Included: WP217
  • Number of Included Inserts: 6
  • Weatherproof Cover Material: UV Stabilized Plastic
  • Product Height (in): 5 1/2
  • Product Height (mm): 139.7
  • Product Width (in): 5
  • Product Width (mm): 127
  • Product Depth (in): 3 1/8
  • Product Depth (mm): 79
  • Warranty: 1-year limited

Documents & Downloads

Product Rating


Related Accessories and Parts

  • WP217: Double-Gang Inserts

Overview

UPC 07827507270
GTiN 00078275072701
Warranty Length 1 yr
Width 5 in
Size 3-1/8 DEPTH IN, 79.37 DEPTH MM
Color Clear
Type Rectangular, Receptacle, Deep
Insulation Type Neoprene Gasket
Material Heavy Duty Polycarbonate
Applications Residential, Industrial, Sports Fields, Commercial, Agricultural, Signage, Schools
Mounting Type Vertical
Depth 79.37 mm
Height 139.7 mm
Cable Size (2) 14 Gauge, (1) 12 Gauge
Standard 2008 NEC Article 406.8,2011 NEC Article 406.9 (B1),UL/CSA Cold Impact Testing
Shape Rectangle
Family Brand Name Intermatic
Insulation Material Neoprene Gasket
Construction Heavy-Duty Polycarbonate
Number of Outlets 2
Gang Type Double
Construction Features Heavy-Duty Polycarbonate
