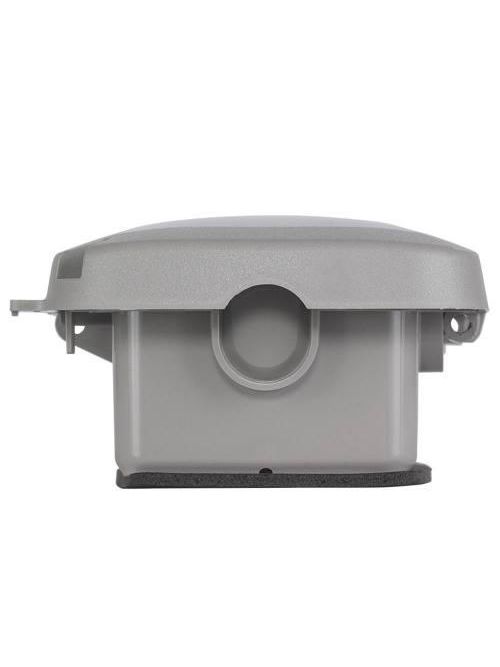

INT-MAT WP5000G W/P CVR,SGL,VRT/HRZ

$16.05/ea

Usually ships within 11 to 17 Days

Adding...

Already a Customer? Log in to view your pricing

Features & Applications

Complies with 2014 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications
Exceeds CEC Article 26-702
UL Certified for Type 3R outdoor enclosures
NEW Faster Installation - Pre-Set for GFCI
Meets requirements for cold impact testing: -60° F (-51° C)
Heavy-duty UV stabilized polycarbonate cover, mounting base, and inserts
1⁄8" (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws
Lockable hasp: All models accept up to 1⁄4" (6 mm) dia shank
Impact rated: 12 lb. impact test to ensure cover remains intact
Reinforced hinge pin designed to exceed 40 lb. hinge hang/stress test
Warranty: 1-year limited
Two inserts provided with all models for duplex and toggle/round
No insert required for GFCI (up to 16 configurations)
Max cord size: (2) #14 AWG or (1) #12 AWG

UPC	07827514528
GTiN	00078275145283
Warranty Length	1 yr
Width	119.1 mm
Size	2.25 DEPTH X 6.5 HEIGHT X 4.75 WIDTH IN, 57.15 DEPTH X 165.10 HEIGHT X 120.65 WIDTH MM
Color	Gray
Type	Weatherproof Receptacle Cover
Material	UV Stabilized Polycarbonate
Applications	Wet Location and Heavy Duty Application
Mounting Type	Horizontal,Vertical
Depth	2 1/4 in
Height	160.3 mm
Cable Size	(2) 14 Gauge, (1) 12 Gauge
Standard	2014 NEC Article 406.9(B)(1) Compliant,CEC Rule 26-702,CSA,UL Certified For Type 3R,UL Listed
Shape	Rectangle
Family Brand Name	Intermatic
Insulation Material	Neoprene Gasket
Construction	Heavy-Duty Polycarbonate
Number of Outlets	1
Gang Type	Single
Construction Features	Heavy-Duty Polycarbonate
