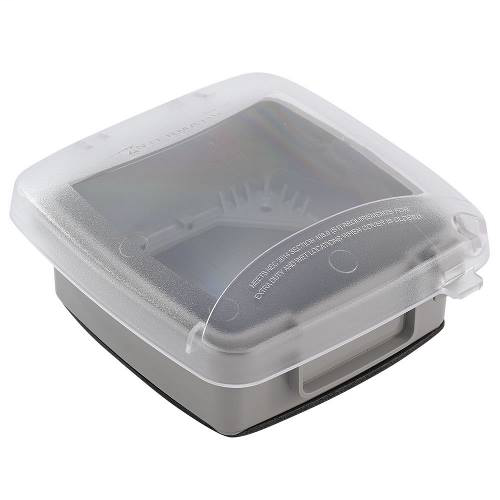

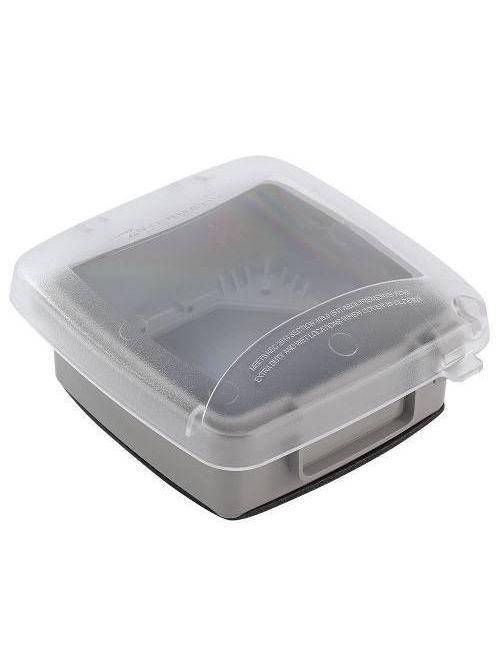

Intermatic WP5220C 2-Gang Vertical Hinge 2-1/4 Inch Extra Duty Clear Plastic Receptacle Cover with Guard Insert
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$16.88/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # WP5220C
North Coast Part # 1013791

Features & Applications

Features

  • Complies with 2014 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications
  • Exceeds CEC Article 26-702
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty UV stabilized polycarbonate cover, mounting base, and inserts
  • 1⁄8" (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws
  • Lockable hasp: All models accept up to 1⁄4" (6 mm) dia. shank
  • Impact rated: 12 lb. impact test to ensure cover remains intact
  • Reinforced hinge pin designed to exceed 40 lb. hinge hang/stress test
  • Warranty: 1-year limited
  • Six inserts provided with all models that allow each model to meet multiple installations (up to 70 configurations)
  • Max cord size: (2) #12 AWG or (1) #10 AWG
  • 30/50 A (1) #6 AWG

Applications

  • Industrial
  • Commercial
  • Manufacturing
  • Residential
  • Agricultural
  • Signage
  • Athletic Fields

Specifications

  • Gang Type: Double
  • Color: Clear, Gray
  • Is Extra Duty Rated: No
  • Hinge Direction: Vertical
  • Insert Types Included: WP217
  • Number of Included Inserts: 6
  • Weatherproof Cover Material: UV Stabilized Plastic
  • Product Height (in): 6
  • Product Height (mm): 154
  • Product Width (in): 6 5/8
  • Product Width (mm): 168.3
  • Product Depth (in): 2 1/4
  • Product Depth (mm): 57
  • Warranty: 1-year limited

Documents & Downloads

Product Rating


Related Accessories and Parts

  • WP217: Double-Gang Inserts
  • WP10HP: Replacement Hinge Pins (10-pc)

Overview

UPC 07827514533
GTiN 00078275145337
Length 6-1/2 in
Warranty Length 1 yr
Width 6-1/2 in
Size 2.25 DEPTH X 6.5 HEIGHT X 6.5 WIDTH IN, 57.15 DEPTH X 165.10 HEIGHT X 165.10 WIDTH MM
Color Clear
Type Rectangular, Receptacle
Insulation Type Neoprene Gasket
Material Heavy Duty Polycarbonate
Applications Wet Location and Heavy Duty Application
Mounting Type Vertical
Depth 2-1/4 in
Height 6 in
Cable Size (2) 12 Gauge, (1) 10 Gauge
Standard 2014 NEC Article 406.9(B)(1) Compliant,CSA,UL Listed,CEC Rule 26-702,UL Certified For Type 3R
Shape Rectangle
Family Brand Name Intermatic
Insulation Material Neoprene Gasket
Construction Heavy-Duty Polycarbonate
Number of Outlets 2
Gang Type Double
Number of Gangs 2 Gang
Construction Features Heavy-Duty Polycarbonate
