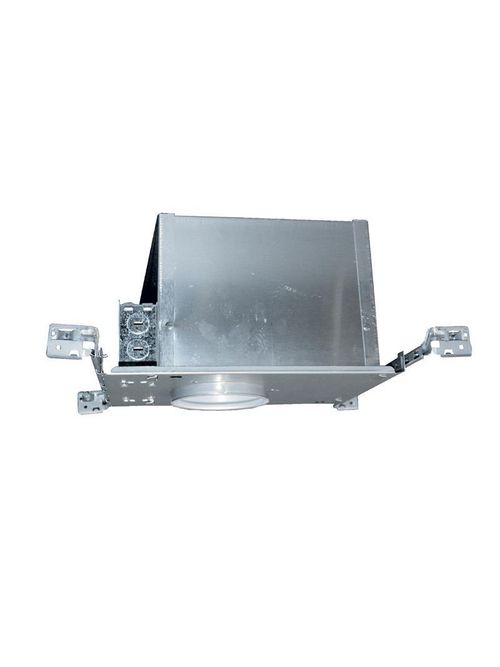

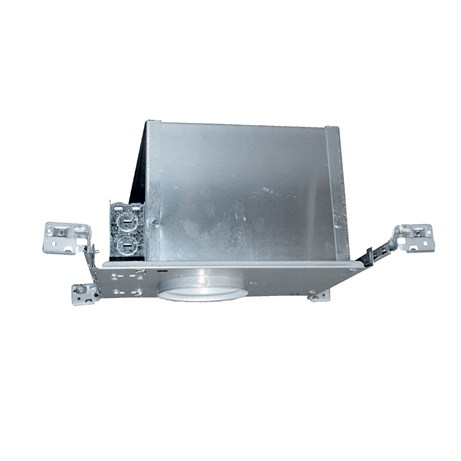

Juno IC1P 4 Inch IC Housing
Product image thumbnail 0
Product image thumbnail 1
Already a Customer? Log in to view your pricing
Manufacturer Juno Lighting
Mfg Catalog # IC1P
North Coast Part # 18502


  • Pre-wired junction box with six 1/2-inch and one 3/4-inch knockouts with pryout slots, 4 non-metallic sheathed cable connectors, and ground wire
  • Detachable medium base porcelain socket with nickel-plated copper screw shell
  • UL, cUL Listed for through-branch wiring, maximum 6 No. 12 AWG minimum 90 degrees C branch circuit conductors: 3 in, 3 out
  • Real NailĀ® 3 bar hangers: telescoping system with pre-installed removable nail for repositioning and integral T-bar mounting feature for suspended ceilings
  • Shadow-free, knife-edge trim design blends smoothly into the ceiling
  • Fully sealed Air-Loc housing
  • Vertically adjustable to accommodate up to a 2-inch ceiling thickness
  • Thermally protected against improper use of insulation and lamps
  • Real NailĀ® 3 bar hangers feature patented break-away bars for tight joist spacing
  • Shipped with socket cap to protect against paint overspray ceilings

Finishes / Types


Line Art



UPC 66120907719
GTiN 00661209077196
Width 231.775 mm
Color Gray
Type IC
Diameter 101.6 mm
Applications Recessed Residential; Damp Location; Wet Location w/appr Trims; IC Rated; Air-Loc
Depth 409.575 mm
Shape Round
Family Brand Name Juno
Lamp Type Incandescent (Lamp Included)
Number of Lamps 1
Fixture Type Incandescent Line Voltage
Housing Material Steel
Lamp Wattage 60 W
Sub Brand Juno
Voltage 120 Volt
