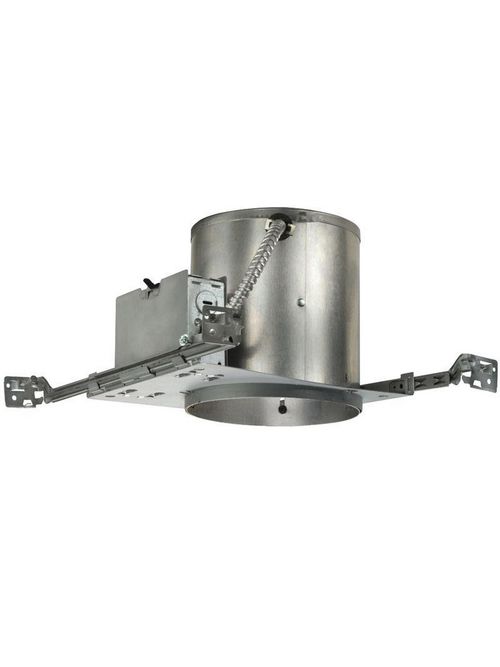

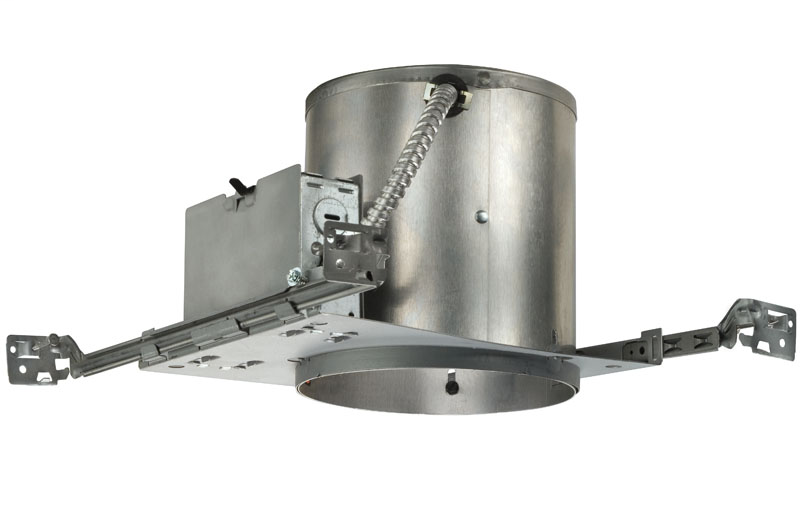

Juno IC23 120 Volt 6 Inch Incandescent Recessed Downlight Housing with Floating Socket
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Already a Customer? Log in to view your pricing
Manufacturer Juno Lighting
Mfg Catalog # IC23
North Coast Part # 18369


  • Juno IC-rated 6-inch incandescent new construction housing with floating socket features an Air-Loc seal to stop infiltration and exfiltration of air, reducing heating and cooling cost
  • Features a floating socket which is optimized for the quickest possible attachment to enclosed and adjustable style trims
  • Recommended lamp A19/BR30/BR40/PAR16/PAR20/PAR30/PAR30L/PAR38/R20 with max lamp ratings based on trim selection
  • Suitable for ceilings up to 1-in. thick
  • UL listed for through-branch wiring, damp locations and IP, product thermally protected against improper use of lamps, union made, UL Listed/CSA certified
  • 120 volt and new construction housings feature patented Real Nail 3 bar hangers: telescoping system with pre-installed removable bugle-headed nail for easy repositioning of housing in joist construction
  • Does not include light source
  • IC housings include an adjustable socket plate and detachable socket with snap-in springs to accommodate various lamp and trim combinations
  • Emergency battery back-up not included in this version
  • 1-year limited warranty
  • 6-in housing, 6 7/8-in. ceiling cutout
  • Housings include a floating socket which is optimized for the quickest possible attachment to enclosed and adjustable style trims
  • Damp location listed
  • Trim options include 6" open, baffle and shower, all in white finish
  • downlight, retrofit housing, can light, retrofit trim, remodel downlight


  • Environment: Indoor
  • Application: Indoor
  • Application Type: Residential
  • Mounting: Recessed
  • Mounting Location: Ceiling
  • Listings: CSA,UL
  • Is CSA Certified: Yes
  • Is Energy Star: No
  • Airtight Rating: No
  • Country Of Origin: MX
  • Contains Mercury: No
  • Light Source: Incandescent
  • Number of Lamps: 1
  • LED Fixture Wattage: 90
  • Maximum Operating Temperature: 25
  • Contains Lithium Battery: No
  • Shape: Round
  • Daylight Sensing: No
  • New Construction or Remodel (Attribute): New Construction
  • Aperture Size: 6 IN
  • Fixture Length: 13.5
  • Fixture Width: 17.5
  • Fixture Height: 7.75
  • Fixture Weight: 4


UPC 66120906859
Item Long Description 6" IC Economy Incand. Housing w/Floating Socket
GTiN 00661209068590
Type Downlight; Adjustable
Applications Residential
Shape Round
Family Brand Name Juno
Lamp Type Incandescent Line Voltage
Number of Lamps 1
Fixture Type Incandescent Line Voltage
Lamp Wattage 90 WTT
Sub Brand Juno
Mounting Type Recessed
Country of Origin Mexico
Environment Indoor
Length 13.5
Width 17.5
Voltage 120 Volt
Height 7.75
Weight 4
