Manufacturer Juno Lighting
Mfg Catalog # IC23R LEDT24
North Coast Part # 760501

Description

  • Compatible with Juno 6-inch retrofit LED trim modules
  • Junction box provided with removable access plate, five 1/2-inch knockouts, 4 non-metallic sheathed cable connectors, and ground wire
  • Non-screw base 120V plug-in connector
  • Push-in electrical connectors supplied for fast, secure installation
  • UL, cUL Listed for through-branch wiring, maximum 4 No. 12 AWG 90 degrees C branch circuit conductors: 2 in, 2 out
  • Remodel springs to accommodate up to a 1-3/4-inch ceiling thickness; knockouts equipped with pryout slots
  • Meets high efficacy requirements of California T24

Finishes / Types

Finishes

Line Art

Documents

Overview

UPC 66120931107

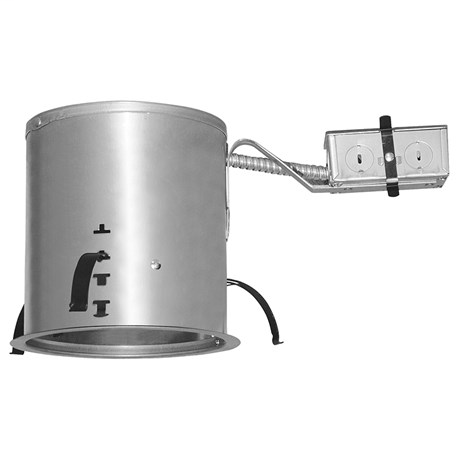

Item Long Description The Juno IC23R-LEDT24 6-inch dedicated LED remodel housing for use with Juno retrofit LED trim modules offers an energy-efficient, Air-Loc sealed housing to stop exfiltration and infiltration of air, reducing heating and cooling costs without extra gaskets. The IC-rated housing can be completely covered with insulation and secured in place by factory-installed remodel springs. The fixture installs through an opening in the ceiling from below, making it ideal for remodel applications where the backside of the ceiling is not accessible.
GTiN 00661209311078
Type Downlight
Applications For Recessed Commercial, Recessed Residential, Damp Location, IC Rated, Air-Loc
Shape Round
Family Brand Name Juno
Lamp Type LED
Number of Lamps 1
Fixture Type LED
Sub Brand Juno
Voltage 120 Volt
Housing Material Aluminum
Blade Dimensions 6 in
