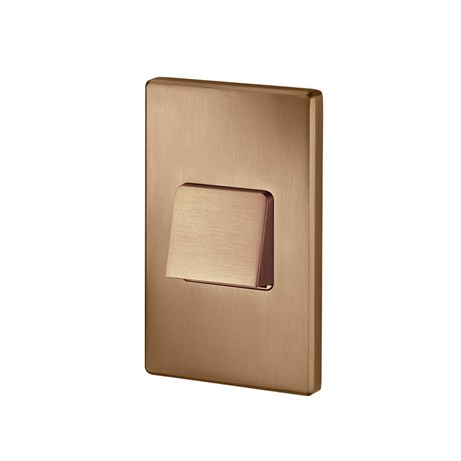

JNO LMS-30K-HD-120-RPC-WH HOOD STEP
$172.17/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Juno Lighting
Mfg Catalog # LMS 30K HD 120 RPC WH
North Coast Part # 877225

Description

  • Hood optic conceals LED and provides a unique light distribution pattern; utilizes two 1W high lumen LEDs
  • Driver is dimmable with the use of Juno qualified 120V electronic low voltage dimmers
  • Maximum 4 No. 12 AWG 75 degrees C through-branch circuit conductors for 2 x 4 junction box and maximum 8 No. 12 conductors for 4 x 4
  • Accommodates an input voltage of 120VAC at 60Hz
  • Die-cast aluminum construction designed for use in IC or non-IC applications
  • Available in various color temperatures and finishes
  • Modular design allows fixture to be mounted in horizontal or vertical orientation
  • UL Listed for indoor damp locations and through-branch wiring
  • Designed to mount directly in standard junction boxes: 2- by 4-inch or 4- by 4-inch fitted with a single-gang plaster ring 5/8-inch minimum depth
  • LEDs are rated for 50,000 hours of life at 70 percent lumen maintenance; no ultraviolet or infrared wavelengths, lead, or mercury

Finishes / Types

Black, Vertical

Satin Nickel, Vertical

Black, Horizontal

White, Vertical

Bronze, Vertical

Line Art

Documents

Overview

UPC 66120930404
GTiN 00661209304049
Finish White, Vertical
Color White, Vertical
Applications Step Lights; Damp Location; IC Rated; ADA Compliant
Shape Rectangular
Family Brand Name Juno
Lamp Type LED
Number of Lamps 1
Fixture Type LED
Lamp Wattage 3 WTT
Sub Brand Juno
