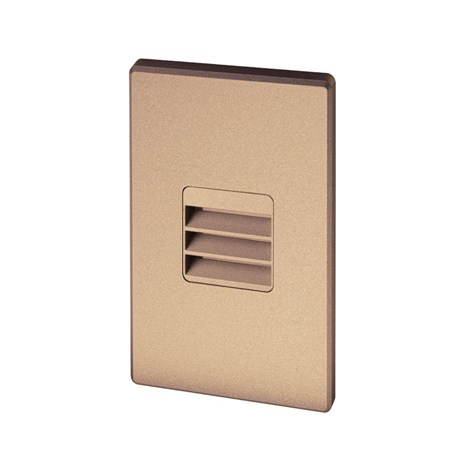

JNO LMS-30K-LVR-120-RPC-WL-BZ LOUVE

Description

• Available in various color temperatures and finishes
• Mounted directly to aluminum heat sink for superior thermal management
• Maximum 4 No. 12 AWG 75 degrees C through-branch circuit conductors for 2 x 4 or maximum 8 No. 12 conductors for 4 x 4
• Modular design allows fixture to be mounted in horizontal or vertical orientation
• Louver optic conceals LED and provides a unique light distribution pattern; utilizes two 1W high lumen LEDs
• UL Listed for wet locations and through-branch wiring
• LEDs are rated for 50,000 hours of life at 70 percent lumen maintenance; no ultraviolet or infrared wavelengths, lead, or mercury
• Designed to mount directly in standard junction boxes: 2- by 4-inch or 4- by 4-inch fitted with a single-gang plaster ring 5/8-inch minimum depth
• Driver is dimmable with the use of Juno qualified 120V electronic low voltage dimmers
• Accommodates an input voltage of 120VAC at 60Hz

Finishes / Types

Silver, Vertical

Black, Vertical

Bronze, Vertical

White, Vertical
