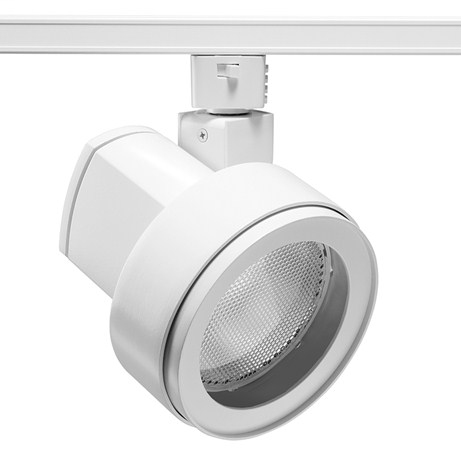

JNO T845-SL CYLINDRA PAR30

Description

• 105-degree vertical aiming capability and 360-degree rotation
• Polarity indicator embossed on copper contact
• The low-voltage Cylindra fixture features contemporary yet timeless styling; constructed of die-cast aluminum, finished in white, black, or silver
• Accepts 50-75W PAR30 halogen lamp
• Medium-base porcelain socket with nickel-plated copper screw shell
• UL/cUL Listed
• Pull-up contact to “up" position for 2-circuit application
• True, positive electrical ground; spring-loaded positive latch with embossed polarity arrow secures trac light to trac
• Integral, bayonet-mount accessory holder accommodates up to 2 accessories simultaneously
• Uniquely shaped, conical-elliptical adapter features copper-alloy contacts that provide precise spring action; no arcing and will not take a set

Finishes / Types

White

Silver

Black

Compatible Systems

• Trac-Lites One Circuit System
• Trac-Master 120V Recessed System
• Trac-Master 120V Two Circuit System
• Trac-Master 120V One Circuit System
• Trac-Master 120V Tube System
