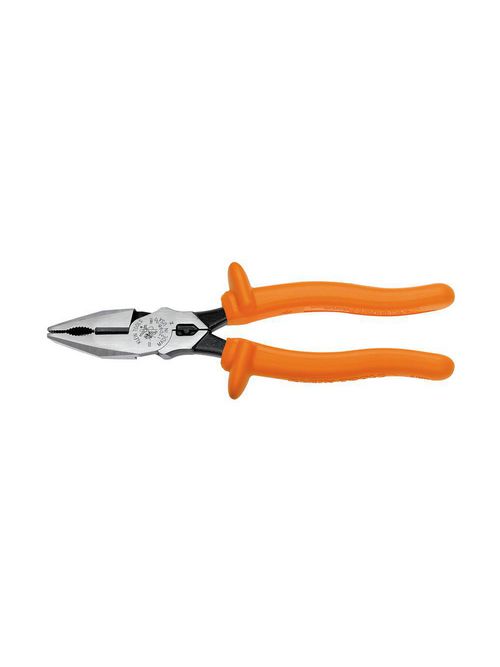

KLEIN 12098-INS Pliers, Insul., Sid
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$71.35/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Klein Tool
Mfg Catalog # 12098-INS
North Coast Part # 345934

Features

  • Individually tested to meet or exceed ASTM F1505-10, IEC 60900: 2004, CAN/ULC-60900-09, NFPA 70E, 2012 ed., CSA Z462 for insulated tool
  • Two layers of insulation provide protection against electric shock
  • Quickly installs and removes spring-tension hose clamps
  • High-leverage design has 35-percent more cutting power
  • Grips with either side or end of jaws for work in confined areas
  • Precision machined pipe-grip for greater gripping power
  • Flame retardant, impact-resistant, bright orange outer coating
  • Integral guards help prevent hand contact with conductive parts
  • Crimping die behind hinge for superior leverage crimping non-insulated connectors, lugs and terminals
  • Induction hardened cutting knives for long life
  • Clearly marked with the official 1000-volt rating symbol

Warnings

  • Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
  • Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
  • Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
  • Wear approved eye protection. Always inspect your tools before use. Do not use if orange coating cracks, breaks or becomes damaged. Destroy tool if white layer shows through orange layer.
  • Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
  • Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.

Specifications

  • Joint Type: Hot-Riveted
  • Knife Length: 0.75" (1.9 cm)
  • Special Features: Integral Guards Help Prevent Hand Contact With Conductive Parts
  • Jaw Thickness: 0.53" (1.4 cm)
  • Type: High-Leverage Pliers
  • Jaw Length: 1.781" (4.5 cm)
  • Weight: 1.0 lb (0.5 kg)
  • Handle Finish: 2-Layer
  • Insulated: Yes
  • Jaw Width: 1.031" (2.6 cm)
  • Handle Color: Orange
  • Application: ACSR, Screws, Nails and Most Hardened Wires
  • Standard: IEC 60900 and ASTM F1505
  • Material: Induction Hardened Steel
  • Cut Style: Side-Cutting
  • Overall Length: 8.76" (22.3 cm)
  • Nose Type: Universal
  • Cuts: Yes
  • Crimps: Yes
  • Country of Origin: United States
  • Item Height (in): 0.5000
  • Item Width (in): 1.0310
  • Item Depth (in): 8.8750
  • Item Weight (lbs): 1.0000

Overview

GTiN 00092644700934
Family Brand Name Klein Tools
Product UPC 09264470093
Color Orange
Type High-Leverage, Hot-Riveted, Insulated
Material Steel
Applications For ACSR, Screws, Nails and Most Hardened Wires
Weight 1.0 lb
Handle Type Dual Insulated
Handle Material High-Dielectric Plastic
Handle Color Orange
Jaw Length 1.781 in
Jaw Thickness 0.53 in
Jaw Width 1.031 in
Overall Length 8-7/8 in
Jaw Type Knurled, Universal
CA Prop65 Warning WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Handle Finish 2-Layer
Knife Length 0.75 in
Insulated? Yes
