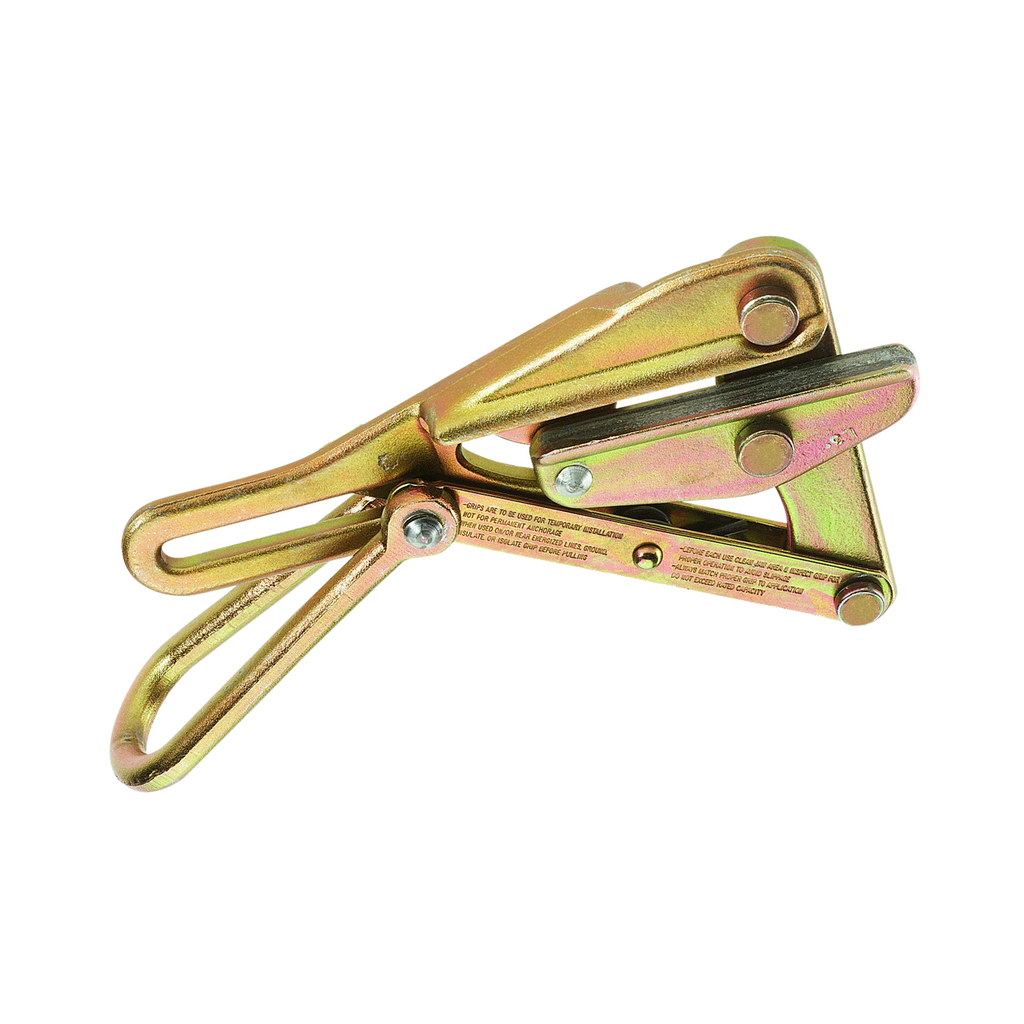

Klein Tools 1613-40 0.12 to 0.37 Inch 4500 lb Forged Steel Wire Pulling Grip
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$162.93/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Klein Tool
Mfg Catalog # 1613-40
North Coast Part # 152196

Features

  • Works with aircraft, EHS, messenger and guy strand cable
  • Designed for cable sizes from 0.12 to 0.37-Inch (3.05 to 9.40 mm)
  • Double ''V'' grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
  • Sawtooth profile provides extra gripping power
  • 4500-Pound (2041 kg) Maximum Safe Load
  • For larger conductors, see our grips with round inside-jaw contour

Warnings

  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.

Specifications

  • Application: Extra-High-Strength Cables, Messenger, Guy Strand
  • Sub Brand: Chicago Grip
  • Maximum Safe Load: 4500 lb (2041 kg)
  • Type: Chicago Grip
  • Jaw Type: Double V
  • Weight: 2.7 lb (1.2 kg)
  • Cable Diameter: 0.12" to 0.37" (3.05 to 9.4 mm)
  • Jaw Length: 4.188" (10.6 cm)
  • Cable Type: Aircraft, EHS, Messenger, Guy Strand
  • Locking Handle: Y
  • Hot Latch: N
  • Spring: N
  • Size_Name: 0.53 to 0.74-Inch Cable Diameter
  • Style_Name: Safe Load 4,500 lb
  • Swing Latch: N
  • Accessories: 25450,
  • Item Height (in): 2.0250
  • Item Width (in): 4.2750
  • Item Depth (in): 7.4250
  • Item Weight (lbs): 2.6640

Overview

UPC 09264447015
Item Long Description This Klein Tools 1613-40 Chicago Grip is designed for EHS, Messenger, and Guy Strand cable. The double V grooves provide four-point contact, which reduces chances of slipping and also provides proper alignment of wire and cable. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
GTiN 00092644470158
Family Brand Name Klein Tools
Applications Extra-High-Strength Cables, Messenger, Guy Strand
Cable Type Aircraft,EHS,Guy Strand,Messenger
Weight 2.664 in
Jaw Length 4.188 in
Load Capacity 4500 lbs. (2041 kg.)
Chain Cable Diameter 0.12 To 0.37 in
Jaw Type Double V
Sub Brand Chicago Grip
CA Prop65 Warning WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Type Chicago Grip
Width 4.275 in
Depth 7.425 in
Height 2.025 in
