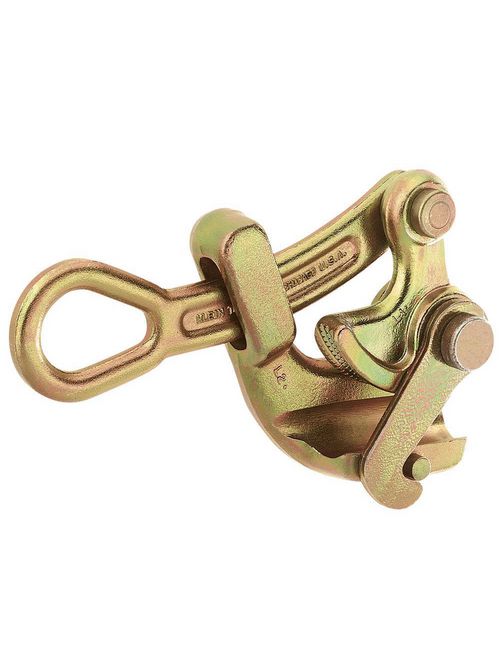

Klein Tools 1625-20 0.28 to 0.75 Inch 8000 lb Forged Steel Wire Pulling Grip
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$137.10/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Klein Tool
Mfg Catalog # 1625-20
North Coast Part # 161024

Features

  • Designed for use when light, compact grip is desired and where conductor damage is not a factor
  • Gripping pressure of the knurled jaw is applied to 1/4-Inch (6.35 mm) cable area
  • Max Safe Load of 8000-Pound (3629 kg)
  • Manufactured from drop-forged, heat-treated steel for excellent durability

Warnings

  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.

Specifications

  • Cable Type: Wire Rope
  • Sub Brand: Klein Havens
  • Type: Haven's Grip
  • Cable Diameter: 0.28" to 0.75" (7.11 to 19.05 mm)
  • Maximum Safe Load: 8000 lb (3629 kg)
  • Jaw Type: Aggressive
  • Weight: 3.5 lb (1.6 kg)
  • Hot Latch: N
  • Locking Handle: N
  • Spring: N
  • Size_Name: 0.28" to 0.75" Cable Diameter
  • Style_Name: Safe Load 8000 lb
  • Swing Latch: Y
  • Accessories: 25450,
  • Item Height (in): 1.8000
  • Item Width (in): 3.8250
  • Item Depth (in): 6.0750
  • Item Weight (lbs): 3.4920

Overview

UPC 09264447220
GTiN 00092644472206
Length 1/4 in Jaw
Type Knurl Jaw, Light, Compact
Material Drop Forged Steel
Conductor Size #1
Family Brand Name Klein Tools
Sub Brand Havens
Applications Tool jaws used for holding cable.
Cable Type Wire Rope
Weight 3.492 in
Chain Cable Diameter 0.28 To 0.75 in
Jaw Type Aggressive
CA Prop65 Warning WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Width 3.825 in
Depth 6.075 in
Height 1.800 in
