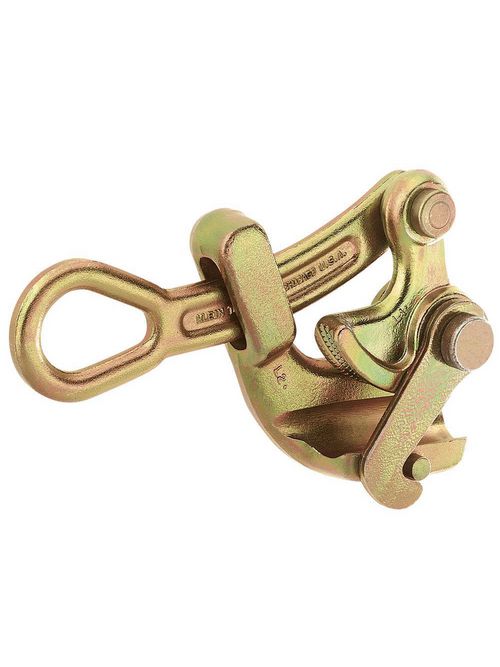

Klein Tools 162520-7/8 0.38 to 0.88 Inch 8000 lb Forged Steel Havens Grip with Rope
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Klein Tool
Mfg Catalog # 162520-7/8
North Coast Part # 604225


  • Designed for use when light, compact grip is desired and where conductor damage is not a factor
  • Works on 0.38 to 0.88-Inch (9.65 to 22.35 mm) wire rope cable diameter range
  • Max Safe Load of 8000 lb (3629 kg)
  • Gripping pressure of the knurled jaw is applied to 1/4-Inch (6.35 mm) cable area
  • Swing latch helps hold cable in the jaw


  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.


  • Sub Brand: Klein Havens
  • Cable Type: Wire Rope
  • Cable Diameter: 0.38" to 0.88" (9.65 to 22.35 mm)
  • Jaw Type: Aggressive
  • Weight: 3.4 lb (1.5 kg)
  • Maximum Safe Load: 8000 lb (3629 kg)
  • Type: Haven's Grip
  • Hot Latch: N
  • Locking Handle: N
  • Spring: N
  • Swing Latch: Y
  • Accessories: 25450,
  • Item Height (in): 1.6920
  • Item Width (in): 4.5000
  • Item Depth (in): 6.7500
  • Item Weight (lbs): 3.3840


UPC 09264447222
Item Long Description The Klein Tools 1625 Series Wire Rope Haven's Grips are designed for use when a light, compact grip is desired and where cable deformation is not a factor. Available with a swing latch to help hold cable in the jaw. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
GTiN 00092644472220
Family Brand Name Klein Tools
Type Aggressive Jaw, Wire Rope
Material Drop Forged Steel
Applications For Holding Cable
Cable Type Wire Rope
Weight 3.384 in
Chain Cable Diameter 0.38 To 0.88 in
Jaw Type Aggressive
Sub Brand Havens
CA Prop65 Warning WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Width 4.500 in
Depth 6.750 in
Height 1.692 in
