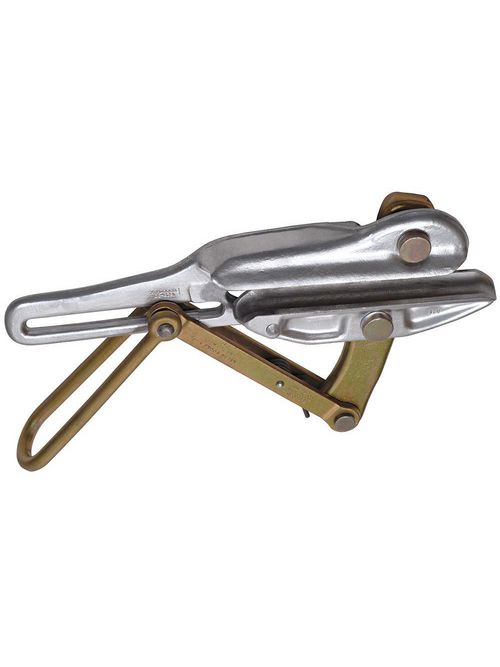

KLEIN 1628-16P Chicago® Grip for Co
Product image thumbnail 0
Product image thumbnail 1
$692.50/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Klein Tool
Mfg Catalog # 1628-16P
North Coast Part # 604226

Features

  • Designed for larger diameter ACSR, AAC and copper cable
  • Round jaws provide maximum contact with the cable minimizing deformation
  • These non-returnable grips are special order only. Please allow 30 days for delivery.
  • Orders must specify exact outside diameter of cables, circular mills with strand combination, or manufacturer's code

Warnings

  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.

Specifications

  • Cable Diameter: 0.31" to 0.89" (7.87 to 22.6 mm)
  • Sub Brand: Chicago Grip
  • Jaw Type: Round
  • Cable Type: ACSR, AAC, Copper
  • Weight: 13.73 lb (6.2 kg)
  • Type: Chicago Grip
  • Maximum Safe Load: 15,000 lb (6803 kg)
  • Locking Handle: N
  • Hot Latch: N
  • Spring: N
  • Swing Latch: N
  • Accessories: 25450,
  • Item Height (in): 1.8000
  • Item Width (in): 6.3000
  • Item Depth (in): 12.3750
  • Item Weight (lbs): 13.7250

Overview

UPC 09264447029
GTiN 00092644470295
Cable Type AAC,ACSR,Copper
Weight 13.725 in
Family Brand Name Klein Tools
Jaw Type Round
Size 0.31 - 0.88 in/2 AWG - 477 kcmil ACSR
Type Round Jaw
Material Drop Forged Heat Treated Steel
Applications For Industrial, Power Utility/Telecommunication Cable Pulling, Temporary Tensioning, Large Diameter Conductors, ACSR, AAC and Copper Cables
Capacity 15000 lb
Chain Cable Diameter 0.31 To 0.89 in
Blade Dimensions 7-1/4 in L Jaw
Sub Brand Chicago
CA Prop65 Warning WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Width 6.300 in
Depth 12.375 in
Height 1.800 in
