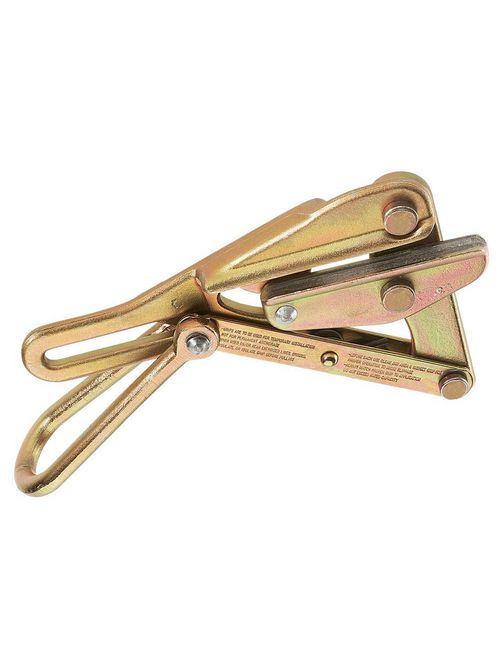

Klein Tools 1628-18 0.75 to 1 Inch 15000 lb Forged Steel Wire Pulling Grip
Product image thumbnail 0
Product image thumbnail 1
$698.26/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Klein Tool
Mfg Catalog # 1628-18
North Coast Part # 604227

Features

  • Used for Aircraft, EHS, Messenger, Guy Strand cables
  • Designed for 0.75 to 1.0-Inch (19.05 to 25.4 mm) diameter cable sizes
  • For larger conductors, see our grips with round inside-jaw contour
  • Double "V" grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
  • Max Safe Load of 15,000 lbs (6803 kg)
  • Locking handle keeps jaw open while grip is placed on cable with a hot stick

Warnings

  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.

Specifications

  • Jaw Length: 7.25" (18.4 cm)
  • Sub Brand: Chicago Grip
  • Cable Diameter: 0.75" to 1" (19.05 to 25.4 mm)
  • Application: Extra-High-Strength Cables, Messenger, Guy Strand
  • Weight: 14.1 lb (6.4 kg)
  • Jaw Type: Double V
  • Maximum Safe Load: 15,000 lb (6803 kg)
  • Cable Type: Aircraft, EHS, Messenger, Guy Strand
  • Type: Chicago Grip
  • Locking Handle: Y
  • Hot Latch: N
  • Spring: N
  • Size_Name: 0.75 to 1.00-Inch Cable Diameter
  • Style_Name: Safe Load 15,000 lb
  • Swing Latch: N
  • Accessories: 25450,
  • Item Height (in): 2.7000
  • Item Width (in): 6.3000
  • Item Depth (in): 12.6000
  • Item Weight (lbs): 14.0850

Overview

UPC 09264447035
GTiN 00092644470356
Size 3/4 - 1 in
Type Double V Groove Jaw
Material Drop Forged Steel
Applications For Extra-High-Strength Cables, Messenger, Guy Strand
Capacity 15000 lb
Family Brand Name Klein Tools
Sub Brand Chicago
Cable Type Aircraft,EHS,Guy Strand,Messenger
Weight 14.085 in
Jaw Length 7.25 in
Load Capacity 6803 kg.
Chain Cable Diameter 0.75 To 1 in
Jaw Type Double V
CA Prop65 Warning WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Width 6.300 in
Depth 12.600 in
Height 2.700 in
