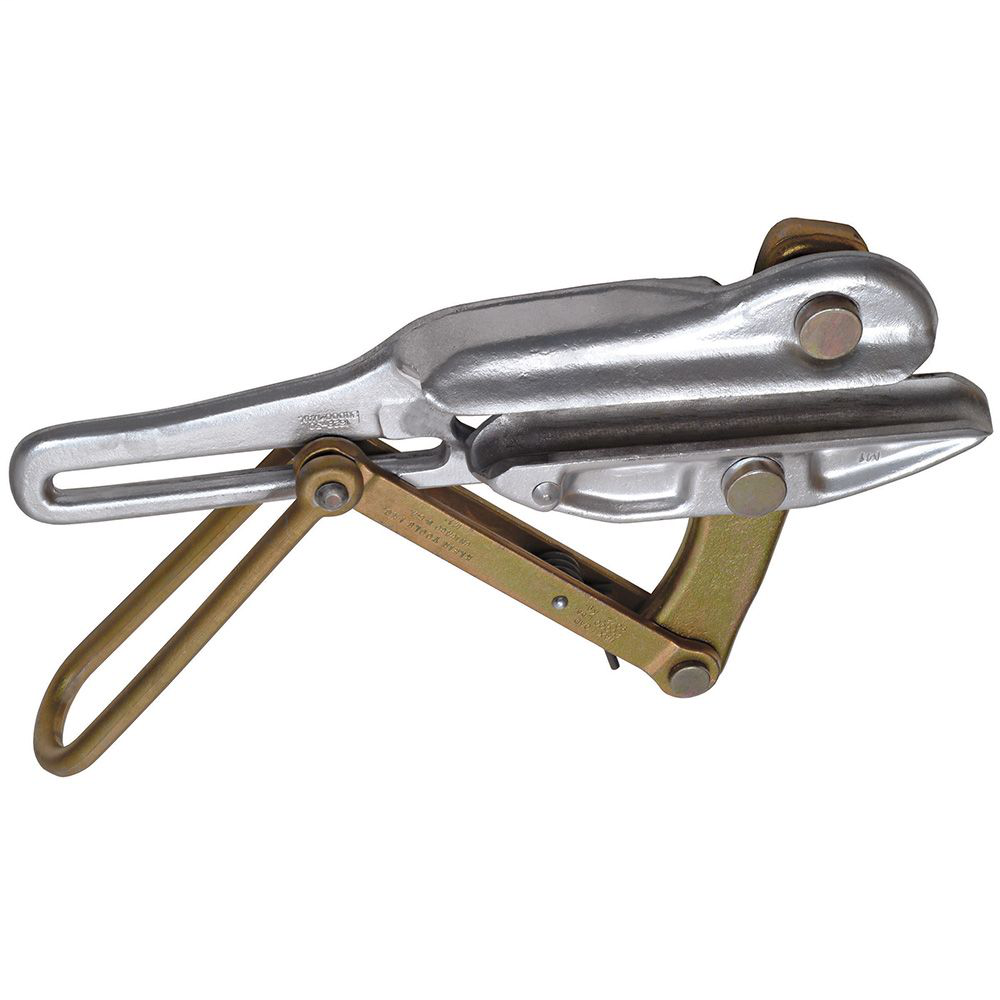

Klein Tools 1628-40 1.24 to 1.54 Inch 25000 lb Forged Steel Wire Pulling Grip
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,189.48/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Klein Tool
Mfg Catalog # 1628-40
North Coast Part # 604229

Features

  • Round jaws are shaped to provide maximum contact with the cable, virtually eliminating conductor damage.
  • These grips are special order only. Please allow 30 days for delivery. These are not returnable.
  • Orders must specify exact outside diameter of cables, circular mills with strand combination, or manufacturer's code.
  • Manufactured from drop-forged, heat-treated steel for excellent durability

Warnings

  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.

Specifications

  • Cable Type: ACSR, AAC
  • Type: Chicago Grip
  • Weight: 30.29 lb (13.7 kg)
  • Cable Diameter: 1.2" to 1.58" (30.48 to 40.13 mm)
  • Sub Brand: Chicago Grip
  • Maximum Safe Load: 25,000 lb (11,340 kg)
  • Locking Handle: Y
  • Hot Latch: N
  • Spring: N
  • Swing Latch: N
  • Accessories: 25450,
  • Item Height (in): 3.1500
  • Item Width (in): 10.0800
  • Item Depth (in): 15.8400
  • Item Weight (lbs): 30.2850

Categories

Overview

UPC 09264447051
Item Long Description Klein Tools' 1628 Series Chicago Grips have a round inside jaw contour designed to hold weatherproof strand and solid coated wire. They also have a notched jaw to provide a firm grip on insulation. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
GTiN 00092644470516
Cable Type AAC,ACSR
Weight 30.285 in
Family Brand Name Klein Tools
Size 1.24 - 1.54 in/1033.5 - 1590 kcmil ACSR
Type Round Jaw
Material Drop Forged Heat Treated Steel
Applications For Industrial, Power Utility/Telecommunication Cable Pulling, Temporary Tensioning, Large Diameter Conductors, ACSR Cables
Capacity 25000 lb
Chain Cable Diameter 1.2 To 1.58 in
Blade Dimensions 10-3/4 in L Jaw
Sub Brand Chicago
CA Prop65 Warning WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Width 10.080 in
Depth 15.840 in
Height 3.150 in
