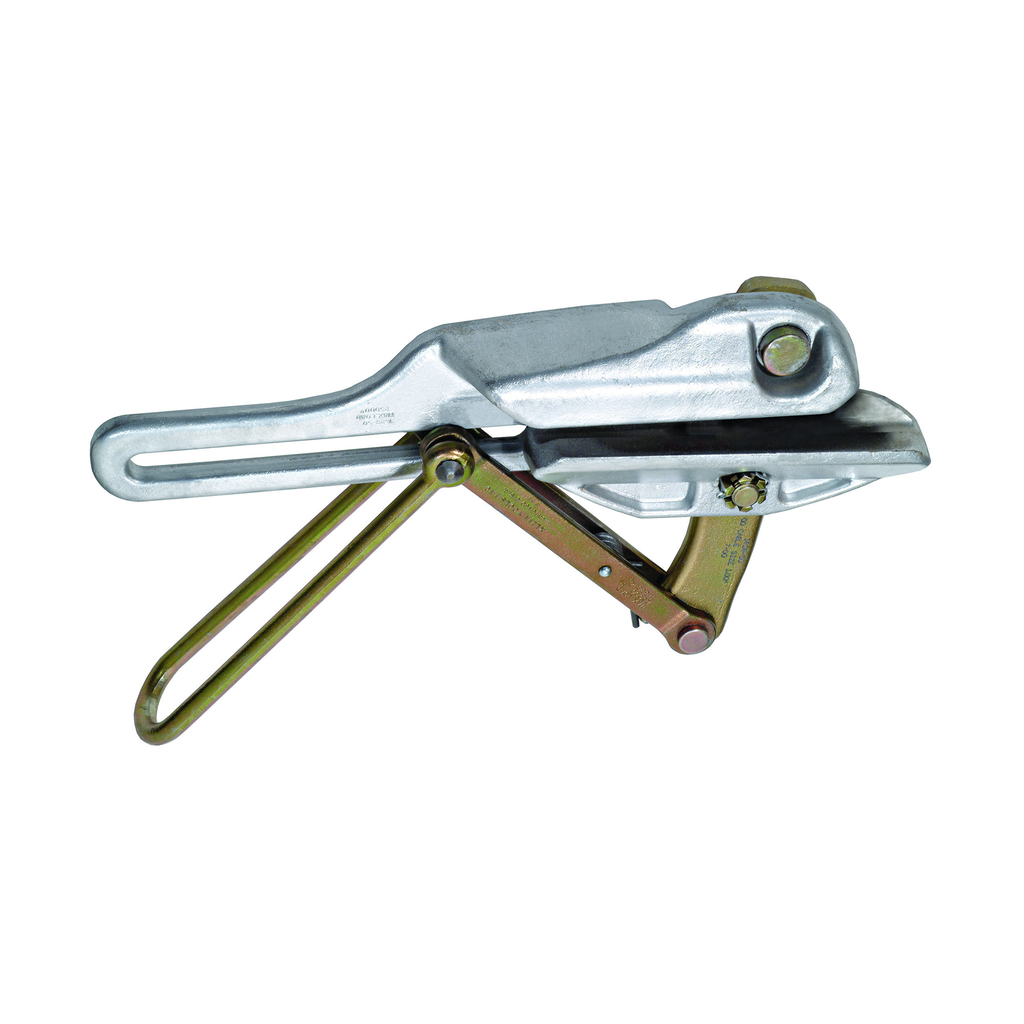

Klein Tools 1628-50 1 to 1.82 Inch 25000 lb Forged Steel Wire Pulling Grip
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,264.06/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Klein Tool
Mfg Catalog # 1628-50
North Coast Part # 604230

Features

  • Removable jaw allows for installation of cable
  • Round jaws are provide maximum contact with the cable minimizing deformation
  • Removable floating jaw held in place by a bolt swaged into the lever arm of the grip, secured by a nut and cotter pin
  • These grips are special order only. Please allow 30 days for delivery. These are not returnable.
  • Jaw must be removed to insert cable
  • Orders must specify exact outside diameter of cables, circular mills with strand combination, or manufacturer's code.

Warnings

  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.

Specifications

  • Cable Diameter: 0.95" to 1.89" (24.13 to 48 mm)
  • Type: Chicago Grip
  • Sub Brand: Chicago Grip
  • Weight: 29.03 lb (13.2 kg)
  • Maximum Safe Load: 25,000 lb (11,340 kg)
  • Cable Type: ACSR, ACSS, ACSS-TW, AAC
  • Jaw Length: 10.75" (27.3 cm)
  • Locking Handle: Y
  • Hot Latch: N
  • Spring: N
  • Swing Latch: N
  • Accessories: 25450,
  • Item Height (in): 2.9250
  • Item Width (in): 8.5500
  • Item Depth (in): 17.5500
  • Item Weight (lbs): 29.0250

Overview

UPC 09264447066
Item Long Description This Chicago Grip is specifically made for ACSR, AAC and copper cabling with larger diameters. These non-returnable grips are special order only. When ordering, please specify exact outside cable diameter, circular mills with strand combination, or the manufacturer's code.Please allow 30 days for delivery.
GTiN 00092644470660
Size 1 - 1.82 in
Applications For Large Diameter Conductors
Cable Type AAC,ACSR,ACSS,ACSS-TW
Weight 29.025 in
Capacity 25000 lb
Family Brand Name Klein Tools
Sub Brand Chicago
CA Prop65 Warning WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Jaw Length 10.75 in
Chain Cable Diameter 0.95 To 1.89 in
Type Chicago Grip
Width 8.550 in
Depth 17.550 in
Height 2.925 in
