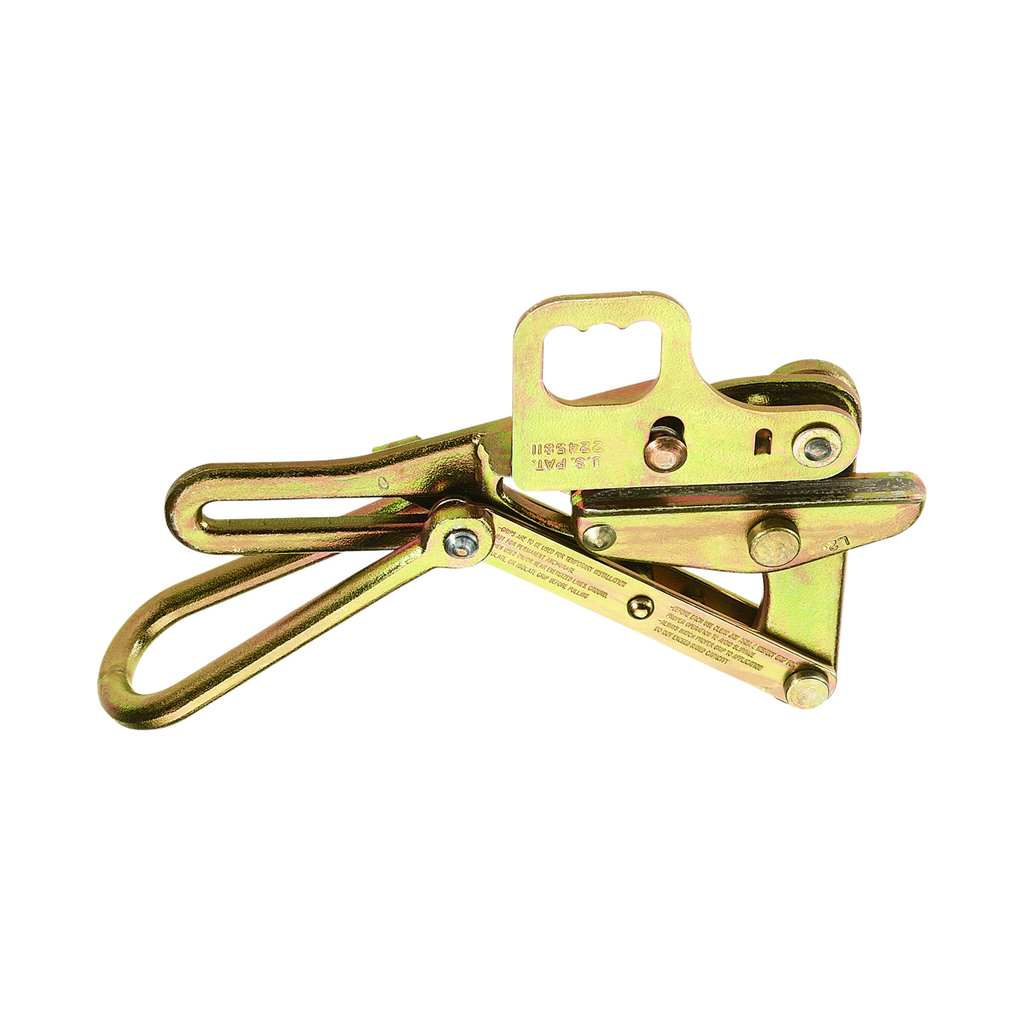

Klein Tools 1656-20H 0.2 to 0.4 Inch 4500 lb Forged Steel Wire Pulling Grip with Hot Line Latch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Klein Tool
Mfg Catalog # 1656-20H
North Coast Part # 604231


  • Hot-line grips for both bare and insulated conductors
  • Grip may be placed on wire with hot-line stick
  • When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire
  • Standard hot-line grips are not supplied with springs or lock-open features
  • When springs or lock-open features are desired, add prefix letter ''S'' before catalog number (example: S1684-5H)


  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.


  • Cable Diameter: 0.2" to 0.4" (5.08 to 10.16 mm)
  • Application: Bare Conductors
  • Type: Chicago Grip
  • Jaw Type: Round
  • Weight: 3.15 lb (1.43 kg)
  • Maximum Safe Load: 4500 lb (2041 kg)
  • Cable Type: Copper, ACSR, AAC
  • Jaw Length: 4" (10.2 cm)
  • Sub Brand: Chicago Grip
  • Locking Handle: Y
  • Hot Latch: Y
  • Spring: N
  • Size_Name: 0.20" to 0.40" Cable diameter
  • Style_Name: Safe Load 4500 lb
  • Swing Latch: N
  • Accessories: 25450,
  • Item Height (in): 2.2500
  • Item Width (in): 6.0000
  • Item Depth (in): 8.0000
  • Item Weight (lbs): 0.1000


GTiN 00092644471056
Type Round Jaw
Material Steel
Applications For Steel Stranded Cable
Family Brand Name Klein Tools
Sub Brand Chicago
Product UPC 09264447105
Cable Type AAC,ACSR,Copper
Weight 0.100 in
Jaw Length 4 in
Chain Cable Diameter 0.2 To 0.4 in
Jaw Type Round
CA Prop65 Warning WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Width 6.000 in
Depth 8.000 in
Height 2-1/4 Inch
