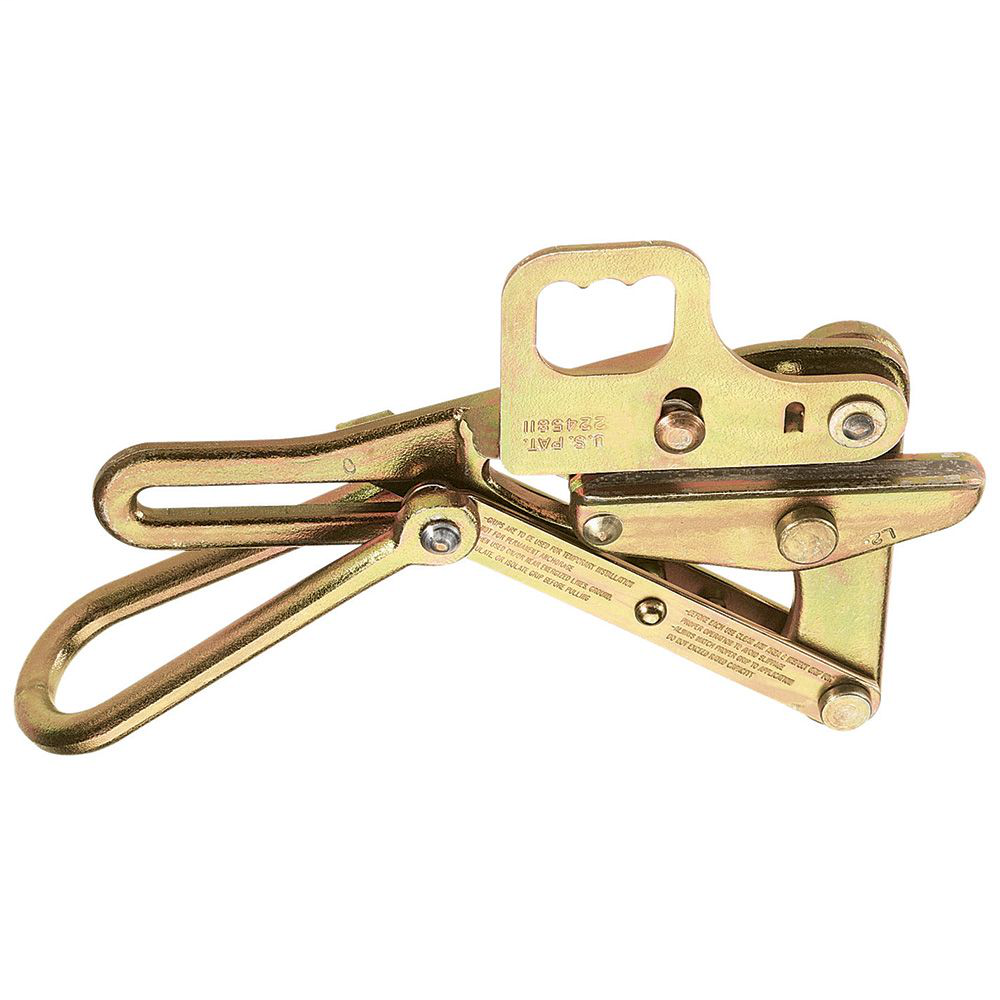

Klein Tools 1656-50H 0.74 to 0.86 Inch 8000 lb Forged Steel Wire Pulling Grip with Hot Line Latch

Features

• Hot-line grips for both bare and insulated conductors
• Grip may be placed on wire with hot-line stick
• When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire
• Standard hot-line grips are not supplied with springs or lock-open features
• When springs or lock-open features are desired, add prefix letter ''S'' before catalog number (example: S1684-5H)

Warnings

• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Do not exceed rated capacity.
• Always match proper size and type of grip to application.
• Grips are to be used for temporary installation, not for permanent anchorage.

Specifications

• Weight: 8.45 lb (3.83 kg)
• Cable Diameter: 0.74" to 0.86" (18.8 to 21.84 mm)
• Type: Chicago Grip
• Sub Brand: Chicago Grip
• Maximum Safe Load: 8000 lb (3629 kg)
• Jaw Length: 5.5" (14 cm)
• Cable Type: ACSR, AAC
• Jaw Type: Round
• Application: Bare Conductors
• Locking Handle: Y
• Hot Latch: Y
• Spring: N
• Size_Name: 0.74" to 0.86" Cable diameter
• Style_Name: Safe Load 8000 lb
• Swing Latch: N
• Accessories: 25450,
• Item Height (in): 2.0000
• Item Width (in): 6.0000
• Item Depth (in): 11.0000
• Item Weight (lbs): 0.1000
