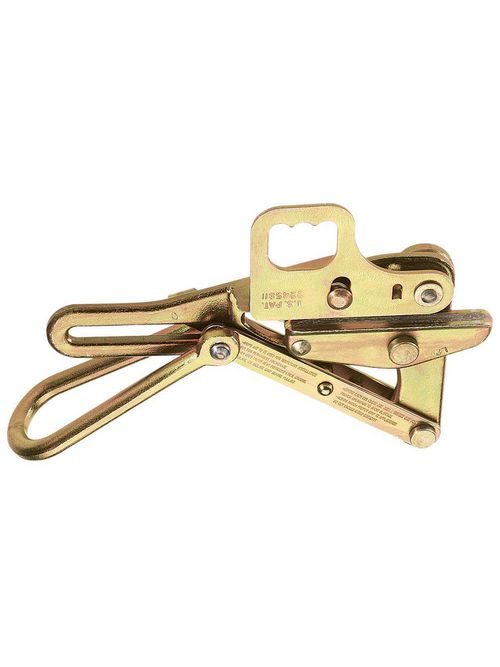

Klein Tools 1656-60H 0.86 to 0.96 Inch 8000 lb Forged Steel Wire Pulling Grip with Hot Line Latch
Product image thumbnail 0
Product image thumbnail 1
$379.54/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Klein Tool
Mfg Catalog # 1656-60H
North Coast Part # 604237

Features

  • Hot-line grips for both bare and insulated conductors
  • Grip may be placed on wire with hot-line stick
  • When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire
  • Standard hot-line grips are not supplied with springs or lock-open features
  • When springs or lock-open features are desired, add prefix letter ''S'' before catalog number (example: S1684-5H)

Warnings

  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.

Specifications

  • Type: Chicago Grip
  • Cable Diameter: 0.86" to 0.96" (21.84 to 24.38 mm)
  • Application: Bare Conductors
  • Cable Type: ACSR, AAC
  • Jaw Length: 5.5" (14 cm)
  • Sub Brand: Chicago Grip
  • Jaw Type: Round
  • Maximum Safe Load: 8000 lb (3629 kg)
  • Weight: 8.4 lb (3.81 kg)
  • Locking Handle: Y
  • Hot Latch: Y
  • Spring: N
  • Size_Name: 0.86" to 0.96" Cable diameter
  • Style_Name: Safe Load 8000 lb
  • Swing Latch: N
  • Accessories: 25450,
  • Item Height (in): 2.0000
  • Item Width (in): 7.7500
  • Item Depth (in): 12.5000
  • Item Weight (lbs): 0.1000

Overview

UPC 09264447118
GTiN 00092644471186
Family Brand Name Klein Tools
Material Steel
Applications Bare Conductors
Cable Type AAC,ACSR
Weight 0.100 in
Jaw Length 5.5 in
Chain Cable Diameter 0.86 To 0.96 in
Jaw Type Round
Sub Brand Chicago Grip
CA Prop65 Warning WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Type Chicago Grip
Width 7.750 in
Depth 12.500 in
Height 2.000 in
