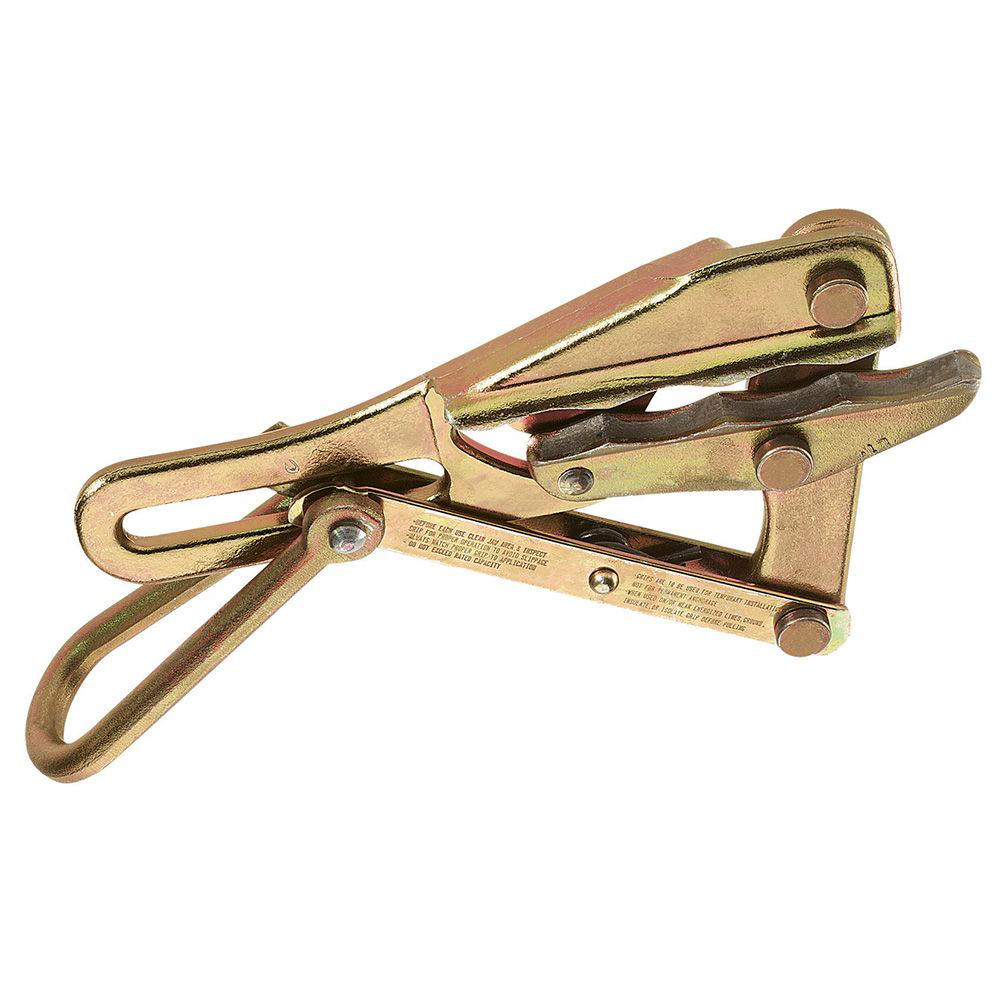

Klein Tools 1659-30 0.31 to 0.5 Inch 4500 lb Forged Steel Wire Pulling Grip
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$239.02/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Klein Tool
Mfg Catalog # 1659-30
North Coast Part # 604238

Features

  • Serpentine jaws are specially machined to allow insertion of insulated conductor through the jaws, which reduces danger of slippage which might result in insulation damage
  • Eliminates necessity of stripping insulation from conductor
  • Round inside-jaw contour
  • Manufactured from drop-forged, heat-treated steel for excellent durability

Warnings

  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.

Specifications

  • Type: Chicago Grip
  • Jaw Type: Round - Serpentine
  • Cable Type: Copper
  • Maximum Safe Load: 4500 lb (2041 kg)
  • Sub Brand: Chicago Grip
  • Cable Diameter: 0.31" to 0.5" (7.87 to 12.7 mm)
  • Weight: 3.3 lb (1.5 kg)
  • Jaw Length: 4.75" (12.1 cm)
  • Locking Handle: Y
  • Hot Latch: N
  • Spring: Y
  • Size_Name: 0.31 to 0.50-Inch Cable Diameter
  • Style_Name: Safe Load 4500 lb
  • Swing Latch: N
  • Accessories: 25450,
  • Item Height (in): 1.9170
  • Item Width (in): 3.8250
  • Item Depth (in): 8.5500
  • Item Weight (lbs): 3.2580

Overview

UPC 09264447126
Item Long Description The Klein Tools 1659 Series PVC-Covered Chicago Grips have a specially machined serpentine jaw which allows an insulated conductor to be inserted through the jaws. This eliminates the need to strip insulation from the conductor first. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
GTiN 00092644471261
Length 4-3/4 in Jaw
Type Round Jaw
Material Drop Forged Steel
Applications For PVC-Covered Conductors
Family Brand Name Klein Tools
Sub Brand Chicago
Cable Type Copper
Weight 3.258 in
Jaw Length 4.75 in
Chain Cable Diameter 0.31 To 0.5 in
Jaw Type Round - Serpentine
CA Prop65 Warning WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Width 3.825 in
Depth 8.550 in
Height 1.917 in
