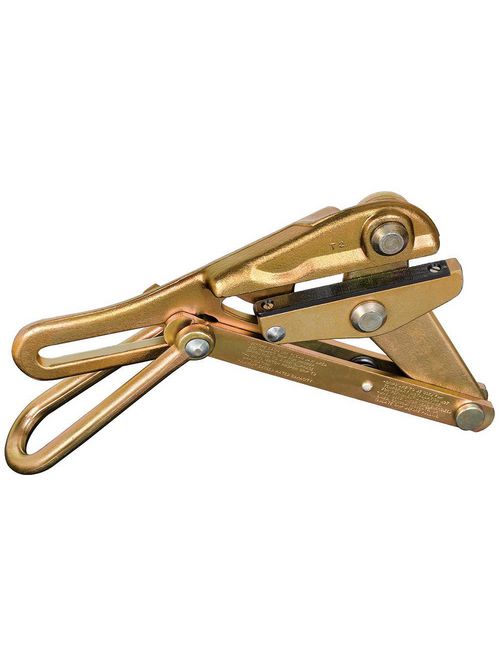

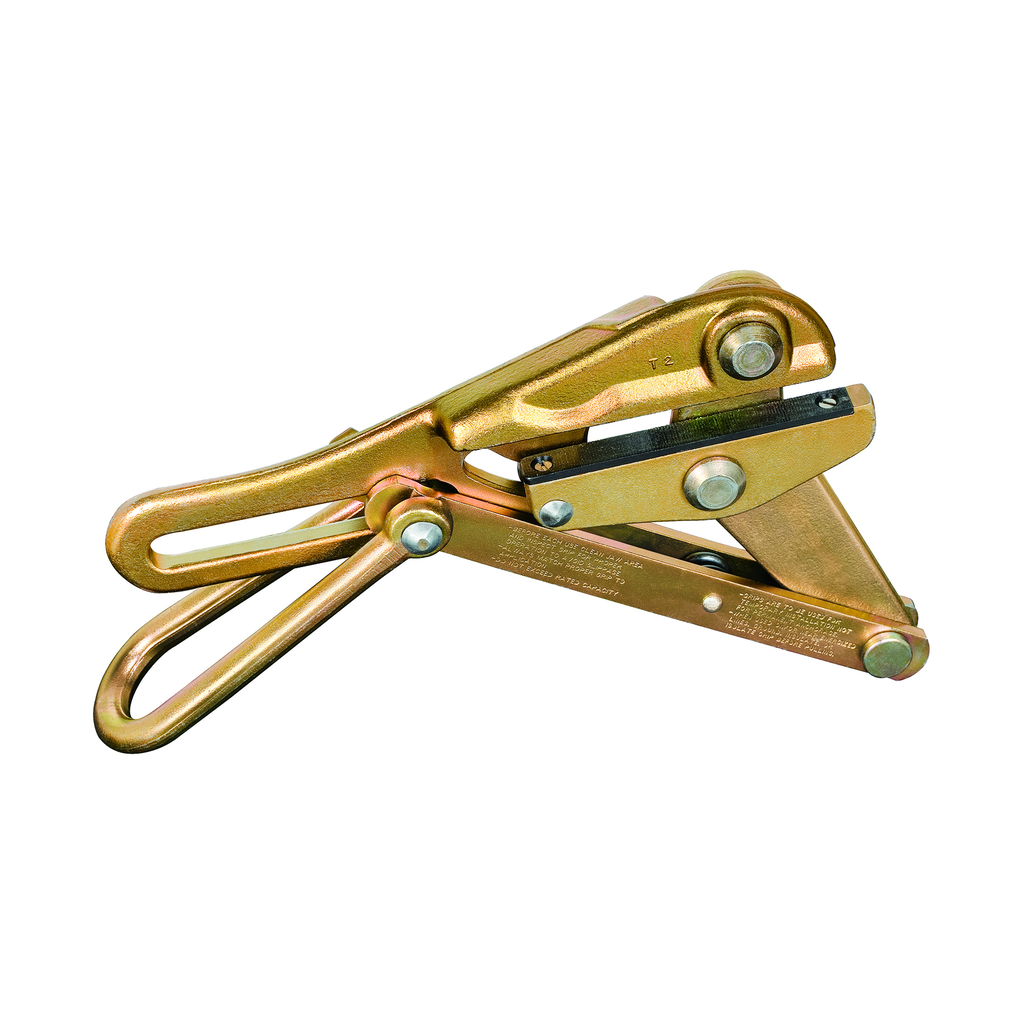

Klein Tools 1684-5F 0.16 to 0.55 Inch 8000 lb Forged Steel Wire Pulling Grip
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Klein Tool
Mfg Catalog # 1684-5F
North Coast Part # 604244


  • Designed for cable sizes from 0.16-Inch (4.06 mm) to 0.55-Inch (13.97 mm)
  • Double "V" grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
  • For larger conductors, see our grips with round inside-jaw contour
  • Similar to Cat. No. 1684-5 except with a file inserted in jaw for extra gripping power. Replacement file No. 578 and screws No. 573 are also available
  • Locking handle keeps jaw open while grip is placed on cable with a hot stick


  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.


  • Application: Wire Pulling
  • Cable Type: Aircraft, EHS, Messenger, Guy Strand
  • Jaw Type: Single V with File Insert
  • Jaw Length: 5" (12.7 cm)
  • Type: Chicago Grip
  • Sub Brand: Chicago Grip
  • Maximum Safe Load: 8000 lb (3629 kg)
  • Cable Diameter: 0.16" to 0.55" (4.06 to 13.97 mm)
  • Weight: 6.4 lb (2.9 kg)
  • Locking Handle: Y
  • Hot Latch: N
  • Spring: Y
  • Size_Name: 0.16 to 0.55-Inch Cable Diameter
  • Style_Name: Safe Load 8,000 lbs.
  • Swing Latch: N
  • Replacement Parts: 570, 573, 578,
  • Accessories: 25450,
  • Item Height (in): 1.7600
  • Item Width (in): 6.5000
  • Item Depth (in): 9.2500
  • Item Weight (lbs): 6.3750


UPC 09264447946
GTiN 00092644479465
Length 5 in Jaw
Type Diamond Jaw
Material Forged Steel
Applications For Extra-High-Strength Cables, Messenger, Guy Strand
Family Brand Name Klein Tools
Cable Type Aircraft,EHS,Guy Strand,Messenger
Weight 6.375 in
Jaw Length 5 in
Load Capacity 8000 lbs. (3629 kg.)
Chain Cable Diameter 0.16 To 0.55 in
Jaw Type Single V With File Insert
Sub Brand Chicago Grip
CA Prop65 Warning WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Width 6.500 in
Depth 9.250 in
Height 1.760 in
