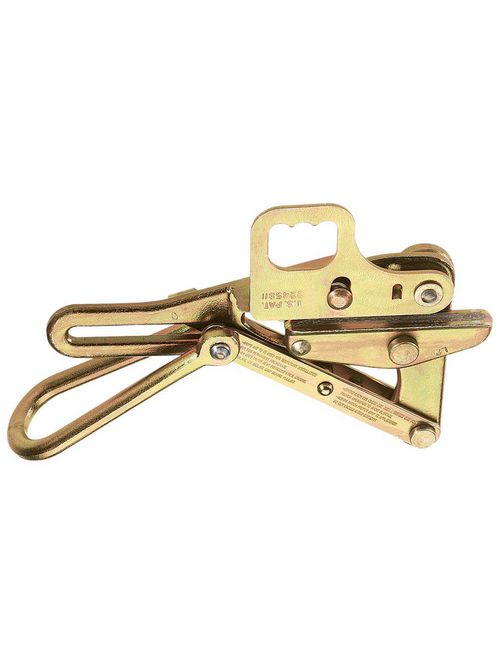

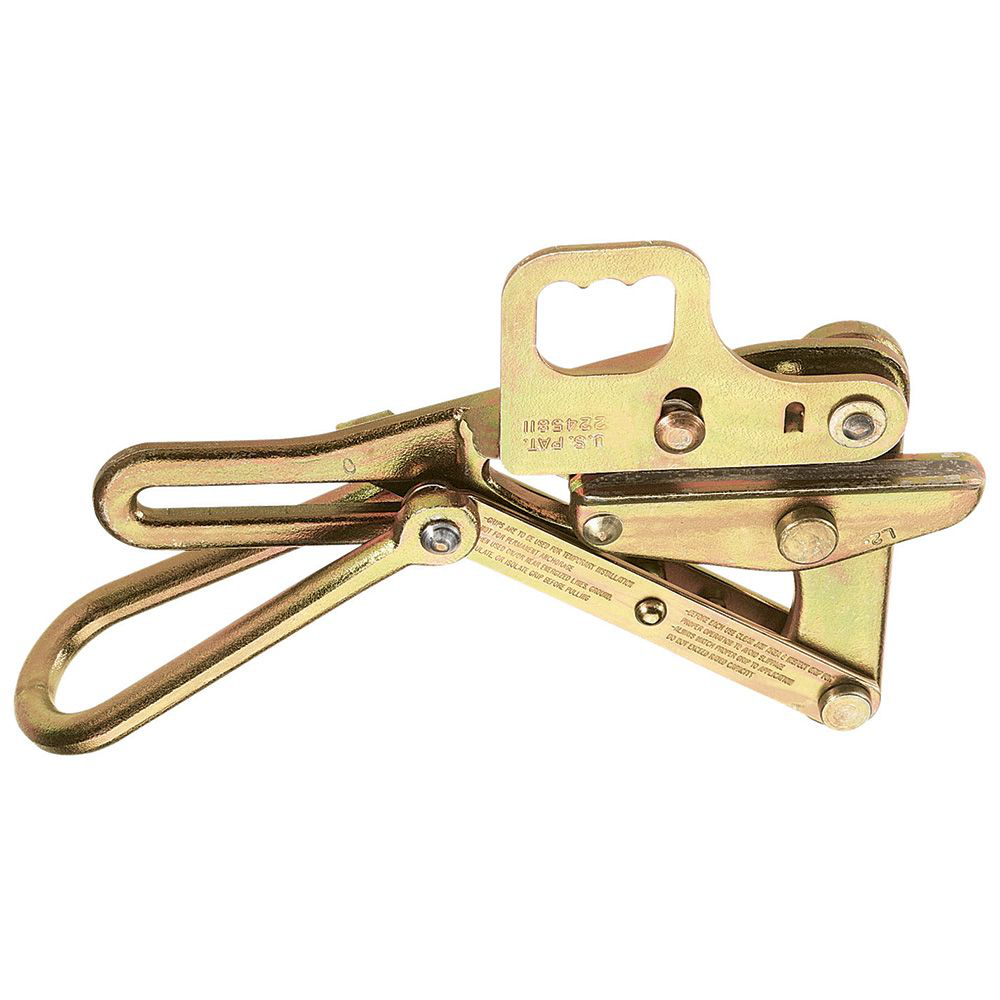

Klein Tools 1684-5H 0.21 to 0.55 Inch 8000 lb Forged Steel Double V-Grooved Pulling Grip with Latch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$358.30/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Klein Tool
Mfg Catalog # 1684-5H
North Coast Part # 604245

Features

  • Hot-line grips for steel stranded cable
  • Grip may be placed on wire with hot-line stick
  • When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire
  • Standard hot-line grips are not supplied with springs or lock-open features
  • Locking handle keeps jaw open while grip is placed on cable with a hot stick

Warnings

  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.

Specifications

  • Jaw Length: 5" (12.7 cm)
  • Maximum Safe Load: 8000 lb (3629 kg)
  • Sub Brand: Chicago Grip
  • Cable Type: Aircraft, EHS, Messenger, Guy Strand
  • Weight: 6.5 lb (2.9 kg)
  • Jaw Type: Double V
  • Cable Diameter: 0.218" to 0.55" (5.54 to 13.97 mm)
  • Type: Chicago Grip
  • Special Features: May Be Placed on Wire with Hot-Line Stick
  • Material: Steel
  • Application: Steel Stranded Cable
  • Locking Handle: Y
  • Hot Latch: Y
  • Spring: N
  • Size_Name: 0.218" to 0.55" Cable diameter
  • Style_Name: Safe Load 8000 lb
  • Swing Latch: N
  • Accessories: 25450,
  • Item Height (in): 1.7600
  • Item Width (in): 8.0000
  • Item Depth (in): 10.0000
  • Item Weight (lbs): 0.1000

Overview

UPC 09264447167
Item Long Description Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. The Chicago style grip was designed for cable sizes from 0.12-Inch to 1.0-Inch (3.10 to 25.4 mm). Hot-line grips for both bare and insulated conductors. Grip may be placed on wire with hot-line stick. When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire. Standard hot-line grips are not supplied with springs or lock-open features.
GTiN 00092644471674
Family Brand Name Klein Tools
Material Steel
Applications Steel Stranded Cable
Cable Type Aircraft,EHS,Guy Strand,Messenger
Weight 0.100 in
Jaw Length 5 in
Load Capacity 8000 lbs. (3629 kg.)
Chain Cable Diameter 0.218 To 0.55 in
Jaw Type Double V
Sub Brand Chicago Grip
CA Prop65 Warning WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Type Chicago Grip
Width 8.000 in
Depth 10.000 in
Height 1.760 in
