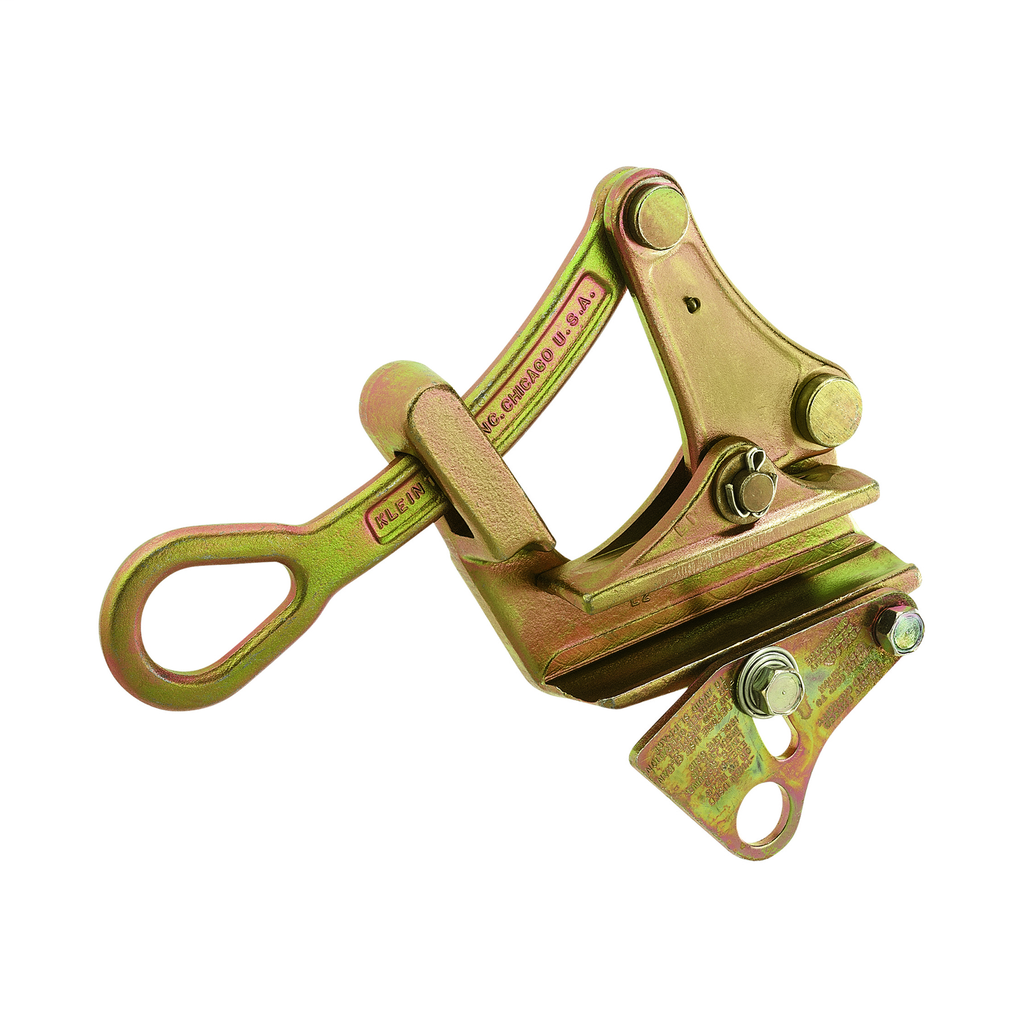

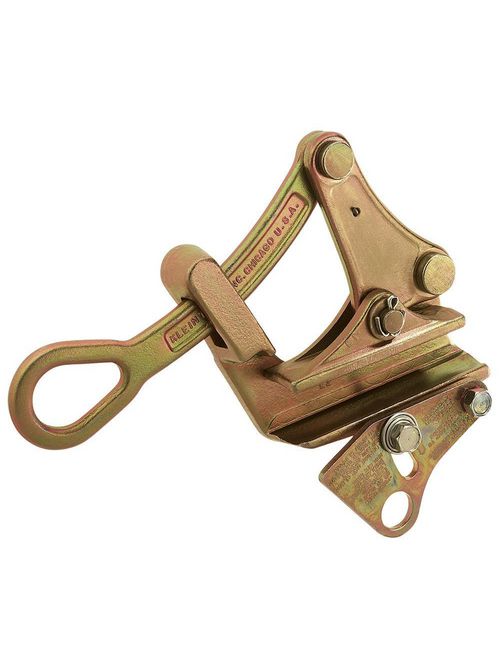

Klein Tools 1685-31 0.62 to 1.25 Inch 7500 lb Forged Steel Parallel Jaw Wire Pulling Grip
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$276.41/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Klein Tool
Mfg Catalog # 1685-31
North Coast Part # 487392

Features

  • Lightweight, compact grips pull an exceptionally wide range of cable sizes and types
  • Designed with a round inside-jaw contour for maximum contact to minimize conductor damage
  • Lower jaw is serrated to firmly grip insulated cables and conductors
  • Design includes a latch that prevents the grip from falling in case of jaw disengagement from the cable
  • Large-diameter eye accommodates large hooks on hoists, winches and tackle blocks

Warnings

  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.

Specifications

  • Type: Compact
  • Overall Length: 11.7" (29.7 cm)
  • Maximum Safe Load: 7500 lb (3400 kg)
  • Cable Type: Messenger, EHS, Guy Strand
  • Application: Cable Pulling
  • Cable Diameter: 0.625" to 1.25" (15.87 to 31.75 mm)
  • Special Features: Hot Latch, Spring
  • Weight: 4.8 lb (2.2 kg)
  • Jaw Type: Round - Serrated
  • Jaw Length: 4.5" (11.4 cm)
  • Hot Latch: Y
  • Spring: Y
  • Locking Handle: N
  • Style_Name: Safe Load 7500 lb
  • Configuration: Hot Latch & Spring
  • Size_Name: 0.625" to 1.250" Cable Diameter
  • Swing Latch: N
  • Accessories: 25450,

Overview

UPC 09264447178
GTiN 00092644471780
Family Brand Name Klein Tools
Type Compact
Cable Type Messenger, EHS, Guy Strand
Weight 4.8 lb
Jaw Length 4.5 in
Overall Length 11.7 in
Chain Cable Diameter 0.625 To 1.25 in
Configuration Hot Latch & Spring
Jaw Type Round - Serrated
CA Prop65 Warning WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
