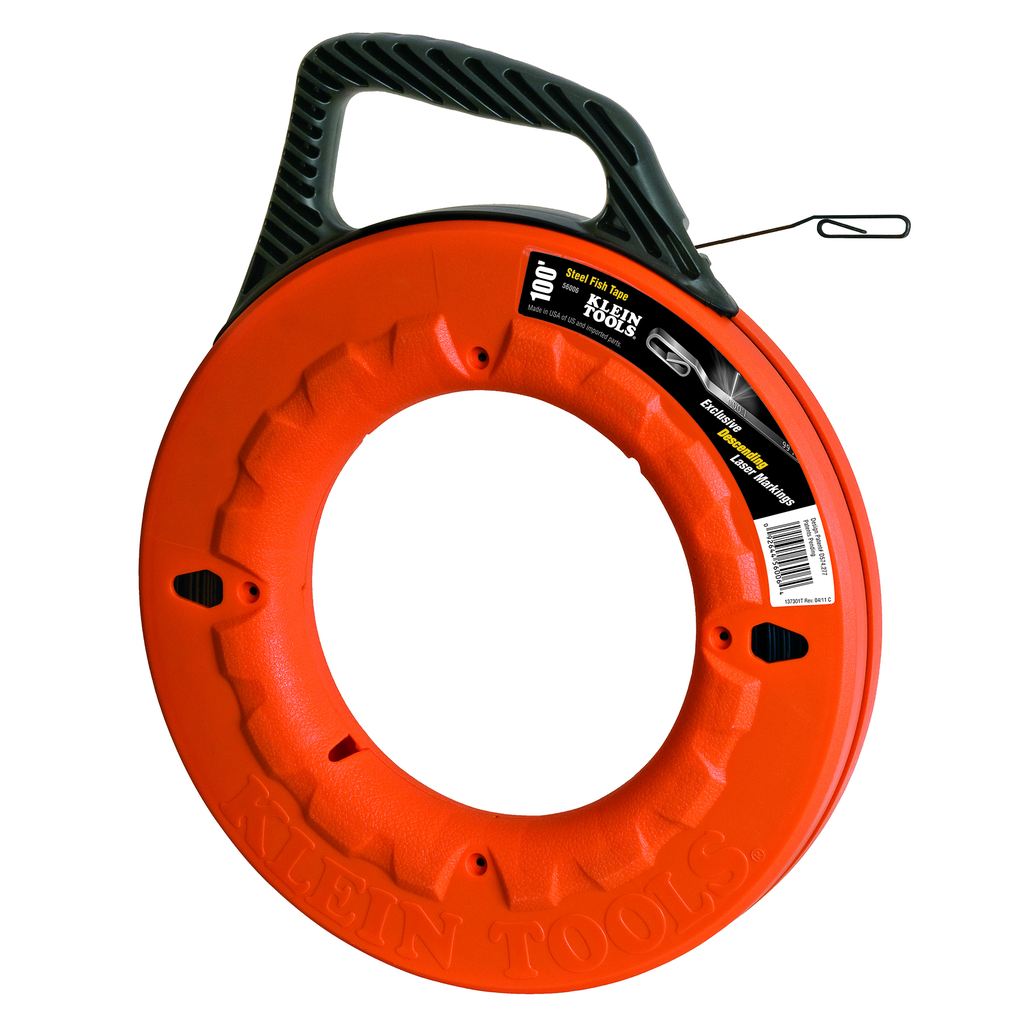

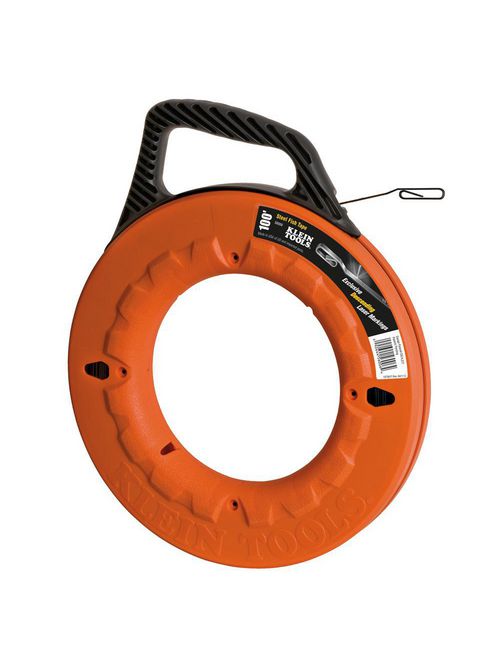

Klein Tools 56006 100 Foot x 1/4 x 0.062 Inch Wide Steel Fish Tape
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$84.22/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Klein Tool
Mfg Catalog # 56006
North Coast Part # 604313

Features

  • High strength 1/4-Inch spring steel fish tapes are stiff for long runs and are great for heavy duty wire pulls
  • Tempered, high quality steel tape keeps its stability as it glides between surfaces for effective pushing and pulling of wire under carpets, through insulated walls and over suspended ceilings
  • Descending laser etched markings in 1-foot (0.3 m) increments allow you to more accurately measure the length of conduit runs and determine the amount of tape left to pay out
  • Polypropylene case and handle offer the maximum in impact resistance
  • Raised fingergrips transfer 100-percent of the winding power from your hand and fingers
  • Full grip style handle gives you a firm, steady grip as you pull tape from the case
  • Unique sloped handle optimizes hand position for quick hand-over-hand rewinds
  • The 13-Inch (330 mm) case diameter means you can reel in 15-percent more tape in a single revolution than similar sized 12-Inch (305 mm) tapes, saving you time and effort
  • Patents: D574,277; 8,212,178; 8,168,921; 8,164,025. Other patents pending

Warnings

  • Wear approved eye protection when feeding, pulling or rewinding fish tape.
  • Do NOT use any fish tape on or near live circuits. Use extreme caution when working near any electrical equipment.
  • Use a safe work position to avoid loss of balance when using fish tape.
  • Never remove screws while fish tape is coiled inside reel.
  • Never form pulling loop into a single loop (into shape of a fish hook) or create a sharp edge that could cause fish tape to catch on other objects or cut into insulation of surrounding wires. Pulling loop should only be formed into a double loop.

Specifications

  • Color: Orange Reel
  • Overall Width: 0.25" (0.6 cm)
  • Type: Fish Tape
  • Diameter: 13" (33 cm)
  • Tape Size: 100' x 1/4" x 0.062" (30.5 m x 6.4 mm x 1.57 mm)
  • Special Features: Optimized Housing Design
  • Application: Wire Pulling
  • Weight: 6.8 lb (3.1 kg)
  • Material: Stainless Steel
  • Size Name: 100-Foot

Overview

UPC 09264456006
Item Long Description High strength steel fish tape glides between surfaces for effective pushing and pulling of wire under carpets, through insulated walls and over suspended ceilings. Permanent, laser etched 1-foot (0.3 m) increments on the tape allow you to more accurately measure the depth of conduit runs and determine the amount of tape left to pay out. Polypropylene case and handle are extremely durable and offer the maximum in shock and impact resistance. Raised finger grips help transfer 100-percent of the winding power from your hand and fingers.
GTiN 00092644560064
Length 100 ft
Width 0.25 in
Color Orange
Type Flat, Rotating Case
Material Steel, Polypropylene Case
Applications For Pushing and Pulling of Wire Under Carpets, Through Insulated Walls and Over Suspended Ceilings, Installation Tub
Weight 6.8 lb
Wire Size 1/4 x 0.06 in
Family Brand Name Klein Tools
Tensile Strength 2000 lb
Diameter 13" (33 cm)
CA Prop65 Warning WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
