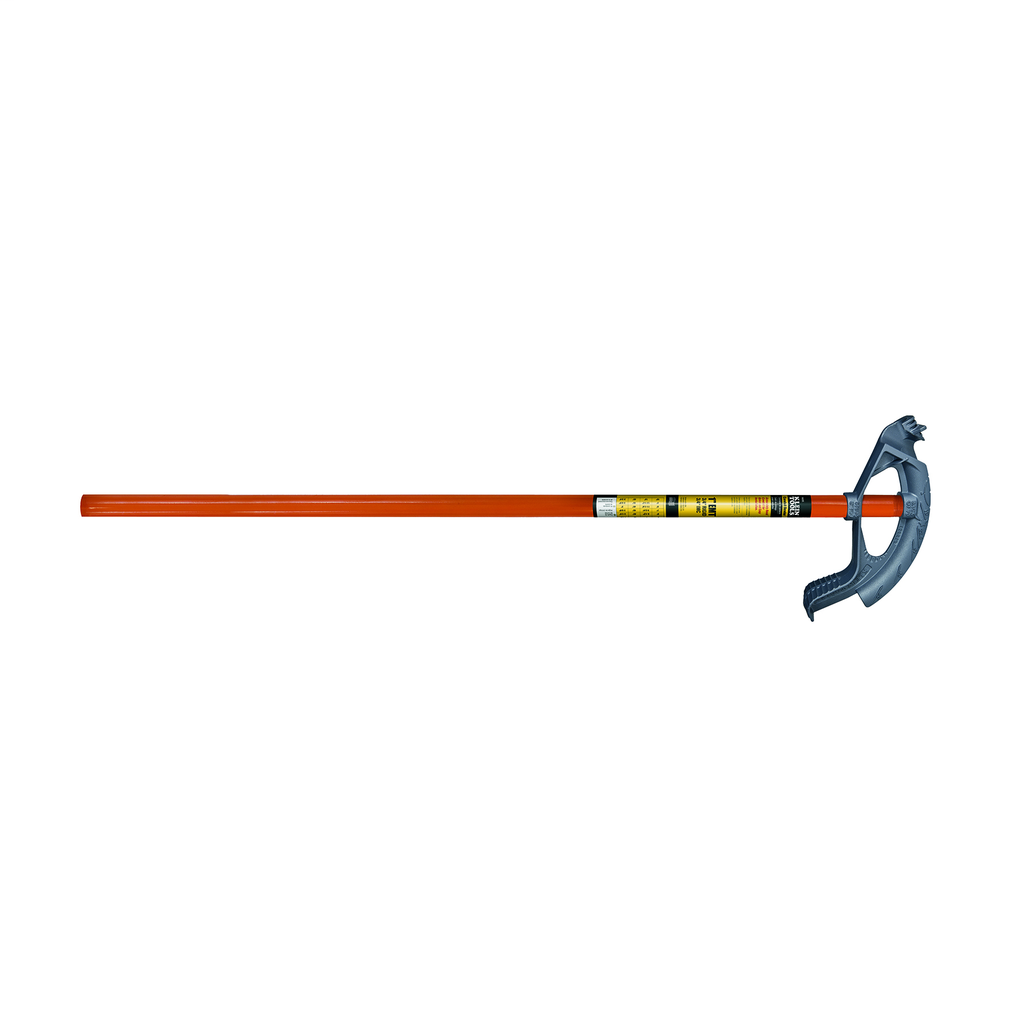

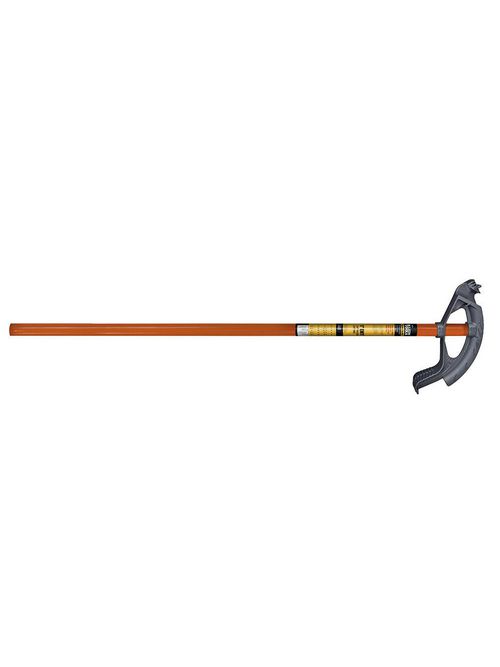

Klein Tools 56204 3/4 Inch EMT 1/2 Inch Rigid/IMC Assembled Bender with Orange Steel Handle
Product image thumbnail 0
Product image thumbnail 1
$73.58/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Klein Tool
Mfg Catalog # 56204
North Coast Part # 604329

Features

  • Exclusive design reduces rippling and ovaling of conduit
  • Traditional BenfieldĀ® head design accurately and consistently performs common bends such as Stub Ups, Offsets, Back-to-Back and Saddle Bends
  • Bold cast-in symbols, degree scales, multiplier scales and center of bend marks help save time on the job
  • Interior hook surface prevents conduit from rolling or twisting during bends
  • Interior clamp securely holds conduit while cutting with hacksaw
  • Wide foot pedal provides excellent stability, leverage and comfort
  • Features angled grooves for extra traction
  • Easily visible arrow for ease of alignment on conduit marks
  • High-strength steel handle features a swaged end for inserting conduit to correct overbends
  • Orange handle is easy to spot on the job site

Warnings

  • Always wear approved eye protection.
  • Use a safe work position to avoid loss of balance.

Specifications

  • Weight: 6.6 lb (3.0 kg)
  • Rigid/IMC: 0.5" (1.3 cm)
  • Included: Handle 51427
  • Overall Length: 36.45" (92.6 cm)
  • Centerline Bend Radius: 5" (13 cm)
  • Application: Stub Ups, Offsets, Back-to-Back, Saddle Bends and Other Bends
  • Type: BenfieldĀ® Head Iron Conduit Bender
  • Overall Width: 9" (22.9 cm)
  • Overall Height: 2.52" (6.4 cm)
  • Marking: Degree Scales, Multiplier Scales, Center Bend Marks
  • Material: Steel
  • Special Features: Wide Foot Pedal for Stability, Leverage and Comfort
  • Thinwall/EMT: 3/4" (1.9 cm)
  • Handle Length: 38" (96.5 cm)
  • Size_Name: 3/4-Inch EMT
  • Replacement Parts: 51427,

Overview

UPC 09264456204
GTiN 00092644562044
Width 9 in
Material Steel
Height 2.52 in
Weight 6.6 lb
Family Brand Name Klein Tools
Overall Length 36.45 in
Type Benfield Head Iron Conduit Bender
Applications For Stub Ups, Offsets, Back-to-Back, Saddle Bends and Other Bends
Conduit Type Rigid, IMC, Thinwall, EMT
Conduit Size 1/2 in Rigid/IMC, 3/4 in Thinwall/EMT
Handle Length 38" (965.2 mm)
Construction Iron, Steel Handle
Bend Radius 5 in
Sub Brand Benfield
CA Prop65 Warning WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
