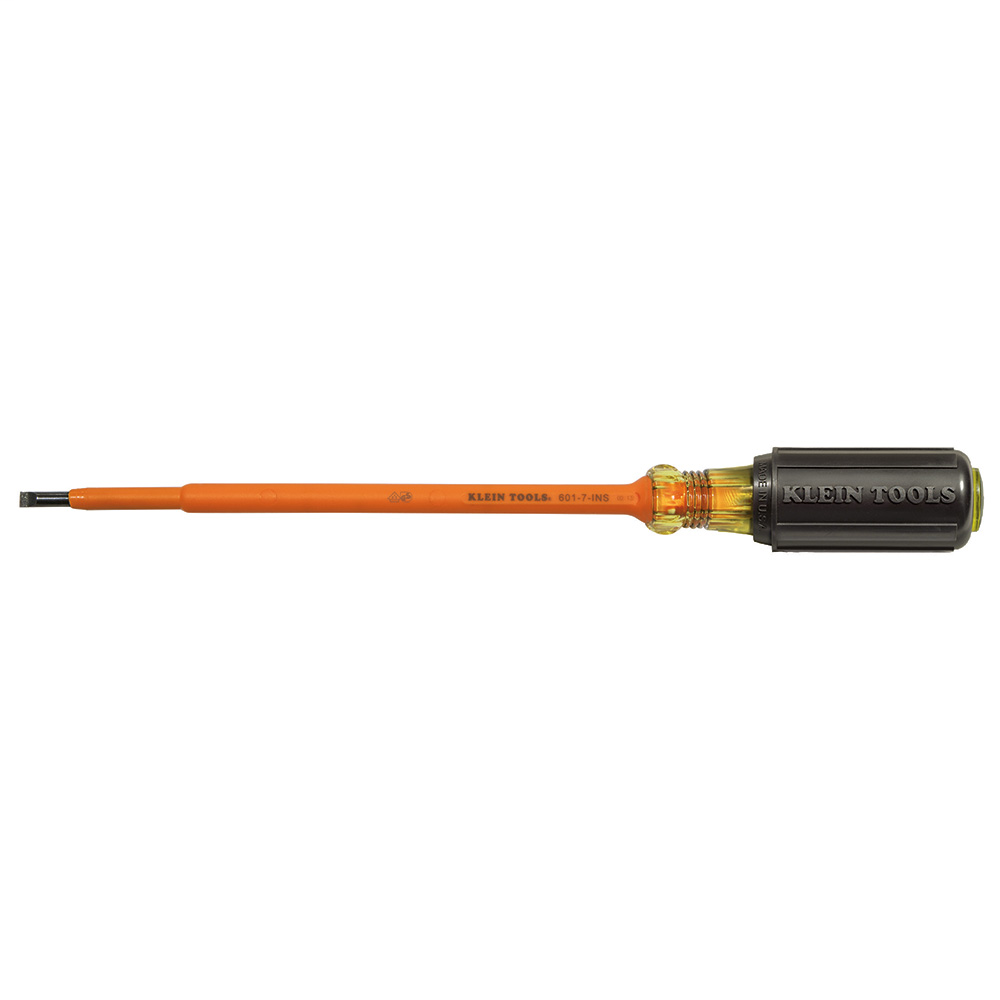

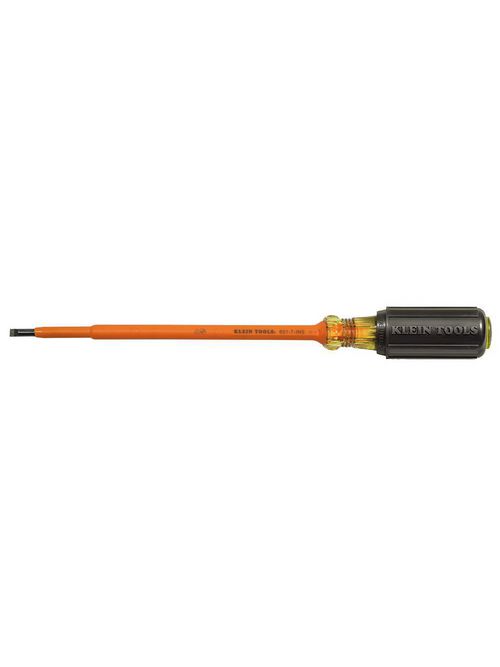

Klein 601-7-INS Insulated 3/16 Inch Cabinet Tip 7 Inch Round-Shank Screwdriver
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Already a Customer? Log in to view your pricing
Manufacturer Klein Tool
Mfg Catalog # 601-7-INS
North Coast Part # 879343


  • 1000V Rated for safety
  • Durable, two-layer, molded insulation to meet or exceed all ASTM and IEC standards for insulated tools
  • Custom US-made tool steel
  • Cushion-Grip handle for superior torque and comfort
  • Made in the USA
  • This item replaces the 601-6-INS and 601-8-INS


  • Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
  • Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
  • Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
  • Wear approved eye protection.
  • Because moisture, films and other surface contaminants are conductive, Klein insulated tools must be kept clean, dry and free of any surface contamination.
  • Do NOT use to pry or chisel.
  • Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.


  • Overall Length: 10.75" (27.3 cm)
  • Insulated: Yes
  • Application: For Work Near Energized Sources
  • Shank Type: Round
  • Tip Type: Cabinet
  • Standard: IEC 60900 and ASTM F1505
  • Shank Length: 7" (17.8 cm)
  • Handle Material: High-Dielectric Plastic
  • Weight: 2.7 oz (77 g)
  • Magnetic: No
  • Special Features: Flame Retardant and Impact Resistant Handle
  • Material: Induction Hardened Steel
  • Style_Name: 3/16-Inch Cabinet Tip
  • Size_Name: 7-Inch Shank
  • Tip Size: 3/16" (4.8 mm)
  • Country of Origin: United States
  • Item Height (in): 1.0000
  • Item Width (in): 1.0000
  • Item Depth (in): 10.7500
  • Item Weight (lbs): 0.1700


UPC 09264485329
Item Long Description Protect yourself when working near an energized source. Clearly marked with the official 1000-volt rating symbol, Klein insulated tools exceed IEC 60900 and ASTM F1505 standards for insulated tools. Two layers of insulation provide protection against electric shock. Built to handle the tough jobs with ease.
GTiN 00092644853296
Type Straight, Insulated
Applications For Work Near Energized Sources
Shank Size 7 in
Handle Type 2-Component
Tip Size 3/16 in
Tip Type Cabinet
Shank Type Round
Handle Material High-Dielectric Plastic
Family Brand Name Klein Tools
Overall Length 10-3/4 in
Blade Size 4.762 mm
CA Prop65 Warning WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Shank Length 7" (177.8 mm)
Blade Material Induction Hardened Steel
Voltage 1000 Volt
Material Induction-Hardened Steel
Weight 2.7 oz
Insulated? Yes
