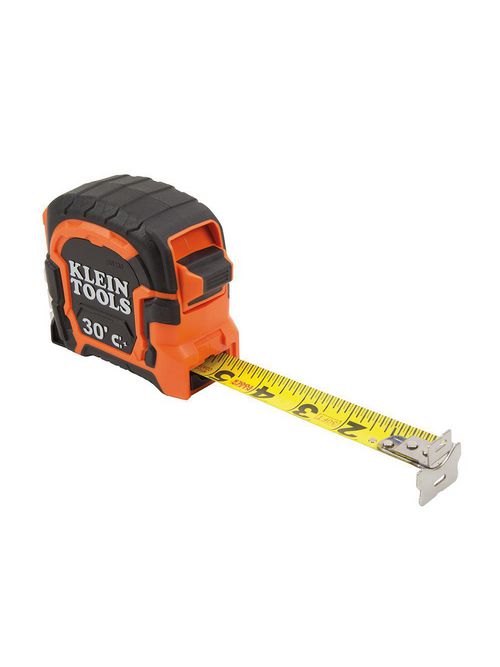

KLEIN 86230 30' Double Hook Tape Me
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Already a Customer? Log in to view your pricing
Manufacturer Klein Tool
Mfg Catalog # 86230
North Coast Part # 1345268


  • Uncluttered, easy-to-read bold lines marked on blade every 1/8-Inch
  • Dual angle magnetic hooks attach to conduit and steel studs
  • Heavy-duty nylon coating protects blade printing
  • Retraction speed brake controls blade speed and protects fingers from touching blade
  • Blade printed Conduit Bending Table helps calculate offsets and saddles
  • Super-sized back clip holds securely to wide belts and extends deep into pockets
  • Up to 9-1/2 feet stand-out
  • U.S. Patent Pending


  • Always wear eye protection.
  • Do NOT open case. Spring motor is under tension and opening may cause injury.
  • Not insulated. Do NOT use on live circuits. Avoid magnetic contact with sensitive electronic or computer equipment.
  • To avoid personal injury and prevent damage to product, do not allow the blade to retract into case at full speed.


  • Type: Double Sided
  • Special Features: Uncluttered, Easy to Read Bold Lines Every 1/8''
  • Tape Length: 30 ft (9.1 m)
  • Tape Material: Steel
  • Tape Coating: Nylon
  • Measurement Standard: SAE
  • Graduations: 1/16''
  • Lockable Tape: Yes
  • Rewind Type: Automatic
  • Hook: Double
  • Magnetic: Yes
  • Belt Clip: Yes
  • Case Material: ABS Plastic
  • Case Color: Orange
  • Overall Width: 2'' (50.8 mm)
  • Overall Height: 3.563'' (90.5 mm)
  • Overall Length: 3.75'' (95.3 mm)
  • Weight: 1.3 lb (0.6 kg)

Related Products

  • 5196
  • 5707
  • 5712
  • 86216
  • 86225
  • 86375
  • 86125
  • 928-25HV
  • 86315


UPC 09264486230
Item Long Description Klein Tools Tape Measures offer inventive first-rate features derived from jobsite professionals, to make jobs easier and more efficient. A magnetic double hook has a center top portion for hanging onto conduit right side up and upside down, while a 1-1/4 inch flared hook was designed specifically to pass-through 1-3/8 inch holes drilled for 1 inch conduit. This large magnet profile attaches to steel and along EMT conduit. A sealed tape brake panel is large enough to allow 2-3 fingers to operate at once for safe retraction, and keeps water and dirt out to prevent tape blade rust and degradation. The high impact rugged rubberized industrial design offers a better grip and stands up to any task the jobsite demands.
GTiN 00092644862304
Width 2 in
Type Magnetic
Height 3.563 in
Weight 1.3 lb
Blade Length 30 ft
Family Brand Name Klein Tools
Blade Material Steel
Overall Length 3.75 in
Case Material ABS
CA Prop65 Warning WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
